Agricultural tent 325216P, 10×16 m

325216
€4,864.03 tax excl.
€5,982.76 tax incl.
Delivery within 3-4 days
Follow our tips for purchasing and installing this product:
phone +48 604 108 143
email [email protected]
Monday - Friday 8.30 - 17.30

Series 32 arched hall.

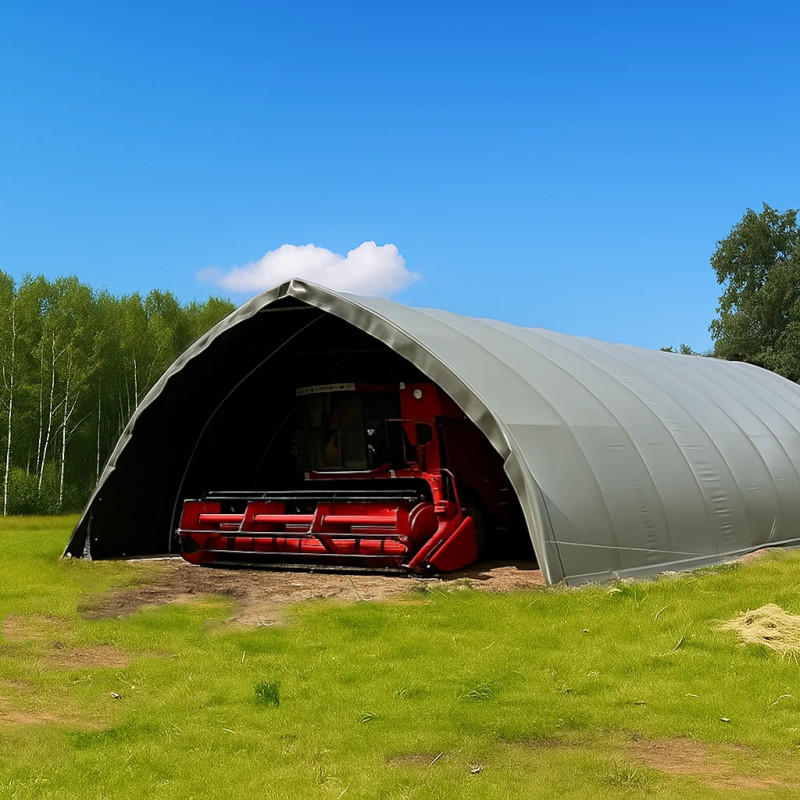

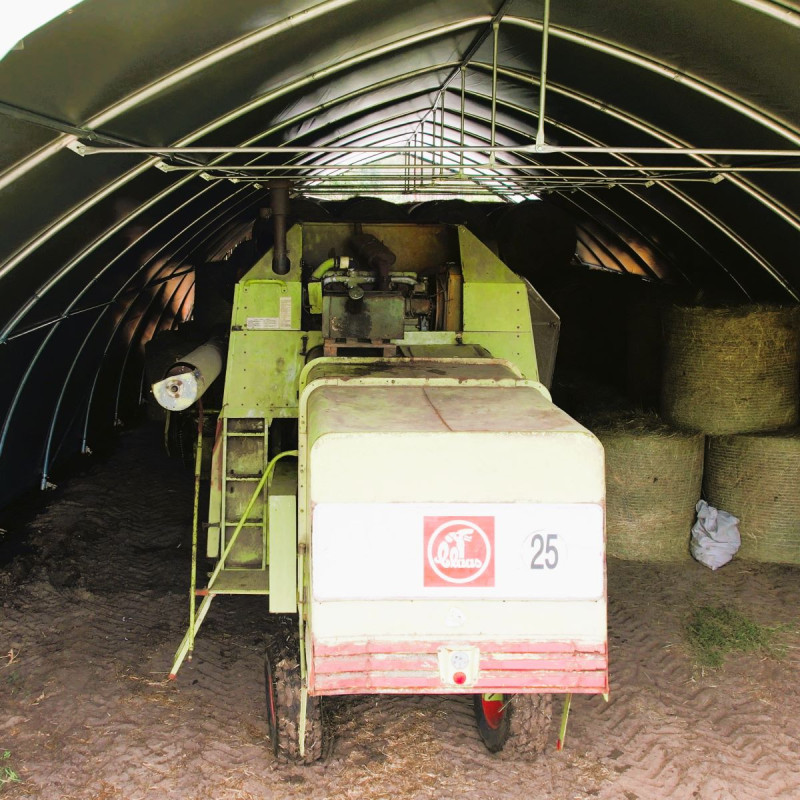

Arched tent halls with a width of 9.76 metres and various lengths (10 m, 12 m, 16 m, 18 m, 20 m,  24 m, 26 m) are the most popular choice among farmers for storing hay bales. With a ridge height of 4.88 m, this is a unique solution that provides a large, functional storage space. Its robust steel structure, with structural arches spaced every 2 m, and high-quality PVC cladding make it the ideal choice for use in the agricultural sector. The hall is ideal for storing fertilisers, hay bales, straw bales and crops, as well as for parking machinery, vehicles and tools. Thanks to its dimensions, it can easily accommodate a combine harvester with a header.

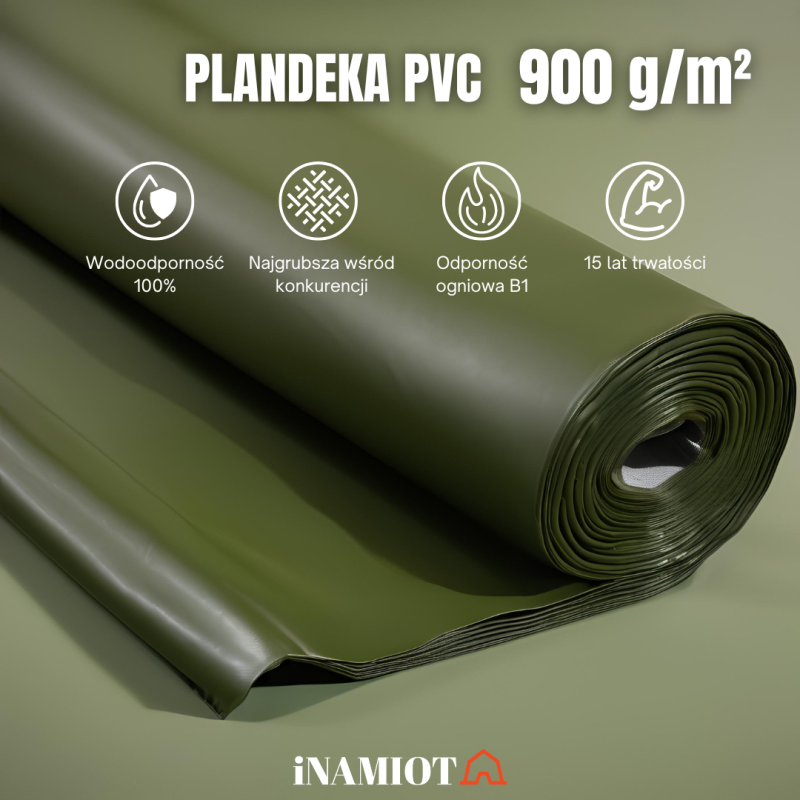

Heavy-duty tarpaulin: 900 g/m²

Our storage tents are fitted with the thickest PVC tarpaulin on the market, at 900 g/sq m; this is designed to extend the service life of our products and ensure maximum protection against wind, water, UV rays and snow. Thick PVC tarpaulin also reduces the risk of mechanical damage, such as abrasions.

Colour

favorite
favorite_border

No carriers available for this product.


print Print this offer

Data sheet Specification
Tearing strength of PVC tarpaulins EN ISO 13934-1 3600N (360 Kg)
UV protection: 50+ according to EN 13758-1:2007 YES
Thickness of PVC tarpaulin 900 g/m2
Width (m) 9.76
Length (m) 12,20
Door opening width (m) 3.66x3.66
Height (m) 4.88
Curve interval (m) 2.00
Arc Φ (mm) 60.0x1.80
Purlin Φ (mm) 40x1.50
Snow load (kPa) 0.28
Maximum wind speed (wind load) (km/h) 80
Number of entrance gates 2

Specific References

EAN13
5901783470262

You might also like

The unique roof structure of the arched tent hall

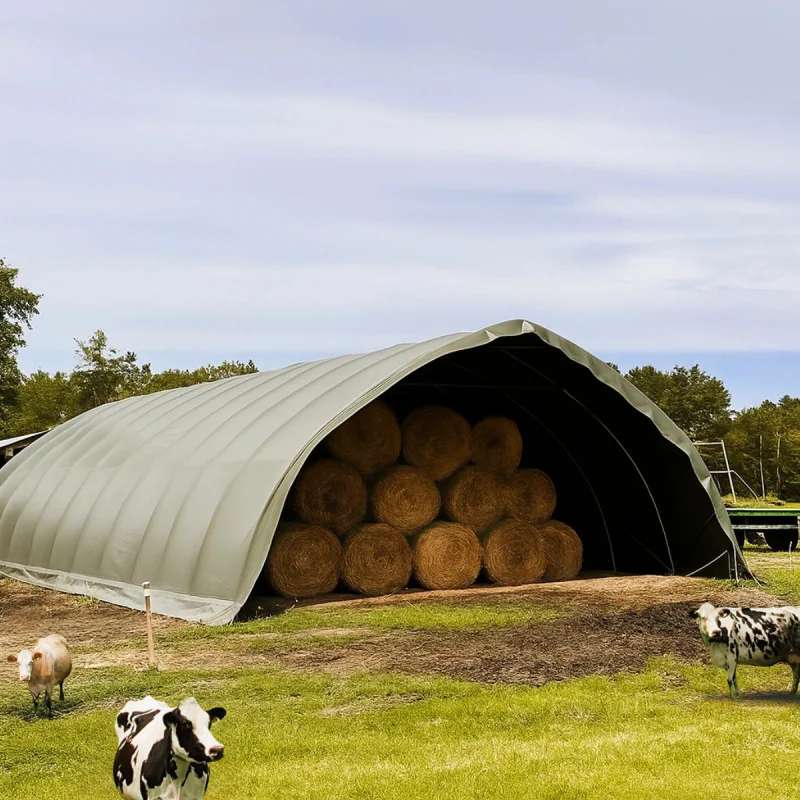

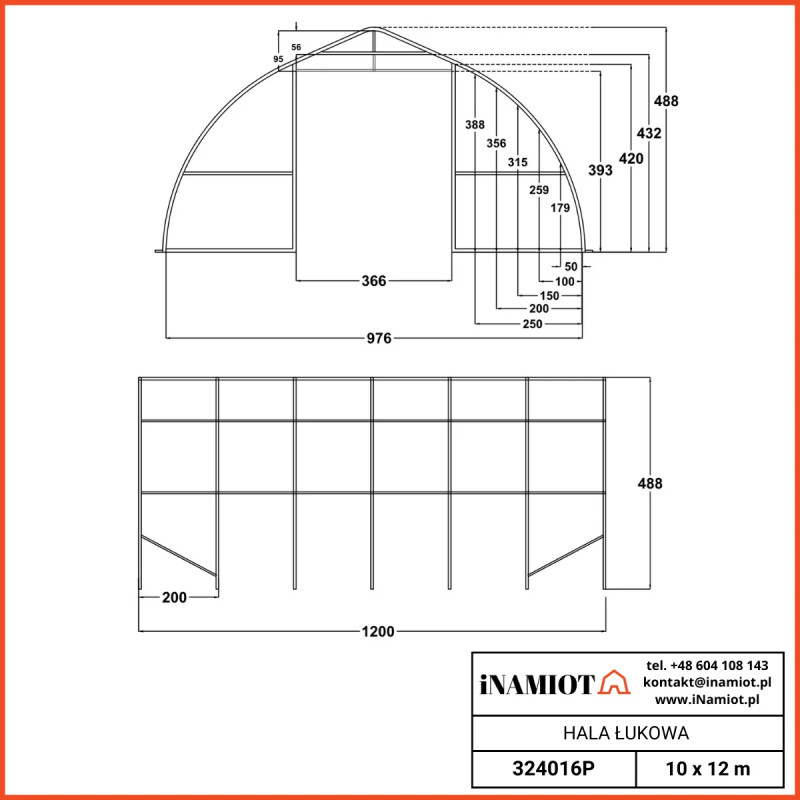

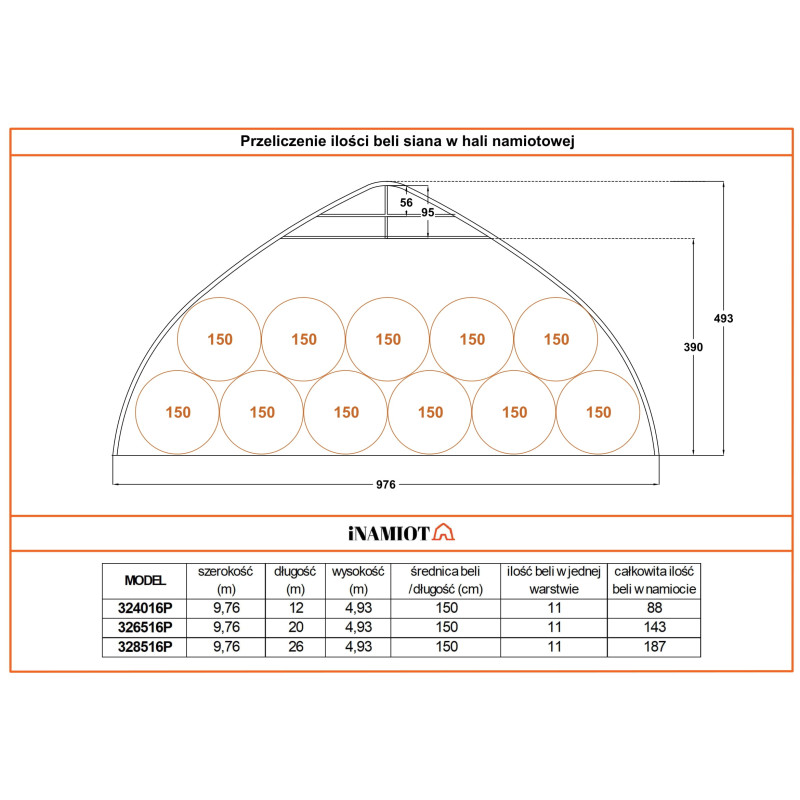

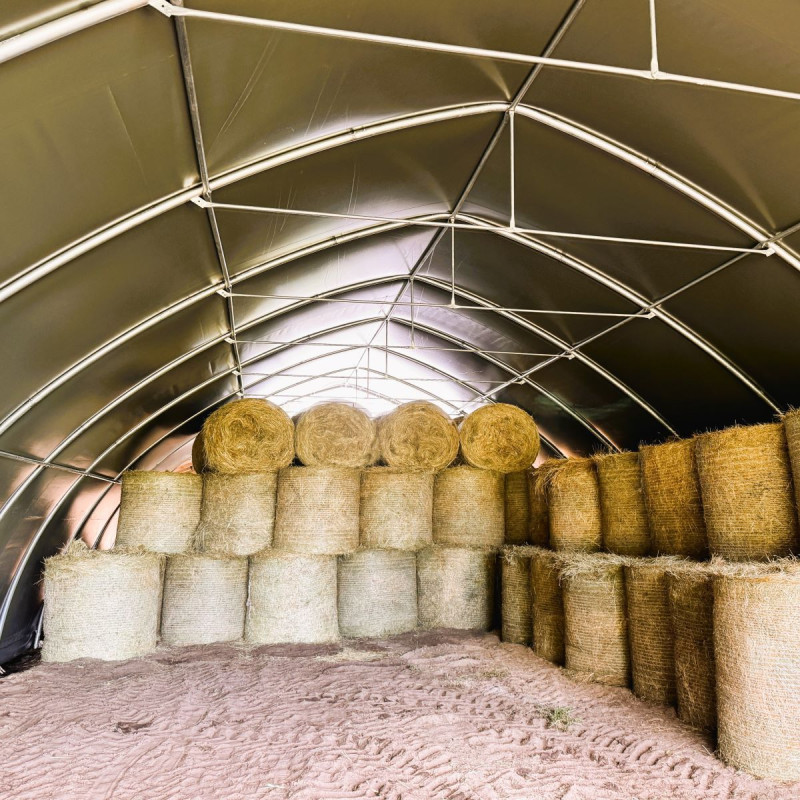

By incorporating a pointed arch into the design of the agricultural hall, we have achieved side walls that rise very steeply, thereby enhancing the ergonomic use of space. Just 50 cm into the agricultural tent, the height under the roof is 180 cm, and when extended a further 100 cm into the tent, the height reaches 250 cm. This allows us to park agricultural machinery right up against the wall and stack hay bales in tall piles. Please take a look at the photos in the gallery.

The roof of the storage tent is reinforced with additional horizontal steel braces which stiffen its structure.

Key specifications of the tent for hay bales:

- Hall dimensions: 9. 76 m wide, 12 m, 18 m, 20 m, 24 m or 26 m long, and 4.88 m high, providing between 120 and 250 m² of usable space.
- Steel structure: galvanised pipes with a diameter of 76 mm ensure robustness and strength, and are resistant to corrosion and external factors.
- Cladding: made from PVC with a weight of 900 g/m², providing full protection against rain, snow, wind and UV radiation.
- Load-bearing capacity: the maximum snow load is 0.28 kPa, and it can withstand wind speeds of up to 80 km/h, making the hall stable even in adverse weather conditions.
- Front and rear gates measuring 3.5 x 3.5 m, allowing convenient access for larger vehicles and machinery
- The removable gable wall allows the full width of the arched warehouse to be utilised, and the gable wall can be fitted very quickly if required.

Simple and quick assembly of the arched hall

The arched hall has been designed for quick and easy assembly. All components are clearly labelled, enabling efficient and hassle-free assembly of the structure. Thanks to its well-thought-out design, no specialist tools are required, and the process itself can be carried out using standard equipment such as a ladder, a hammer or spanner sets.

It is important to prepare the site before assembly. The arched hall for hay bale storage should be positioned on stable ground, preferably on a hard surface, to ensure its long-term stability. The anchors supplied in the kit allow the structure to be securely fixed in place, whilst the elastic transport straps help to ensure the roof tarpaulin is evenly tensioned, guaranteeing its durability and resistance to the elements.

Why choose the Series 32 arched hall?

Thanks to its robust construction, high-quality materials and ease of assembly, the 9.76-metre-wide arched hall is an excellent choice for anyone seeking a reliable, spacious and durable storage solution. Its versatility and weather resistance mean it can be used across a range of industries, whilst fast delivery and easy assembly allow you to put additional storage space into operation in no time.

For more information or inquiries, please visit our contact or our customisation page.
