Storage tent 9.15x9.15 m GS303020
GS303020
+48 604 108 143
[email protected]Monday - Friday 8.30 - 17.30
The GS303020 storage tent (9.15 x 9.15 m) is a sturdy storage tent designed for businesses, farms and construction sites that require a large, covered space for storage, work or to protect equipment.
- Height: 6.10 m,
- 2 entrance gates,
- durable 900 g/m² PVC tarpaulin,
- double truss frame,
- sturdy construction made from galvanised steel tubes (assembly instructions included)
- product ready for immediate dispatch to Poland and EU countries
- easy assembly without specialist equipment and without voiding the warranty, following the instructional video

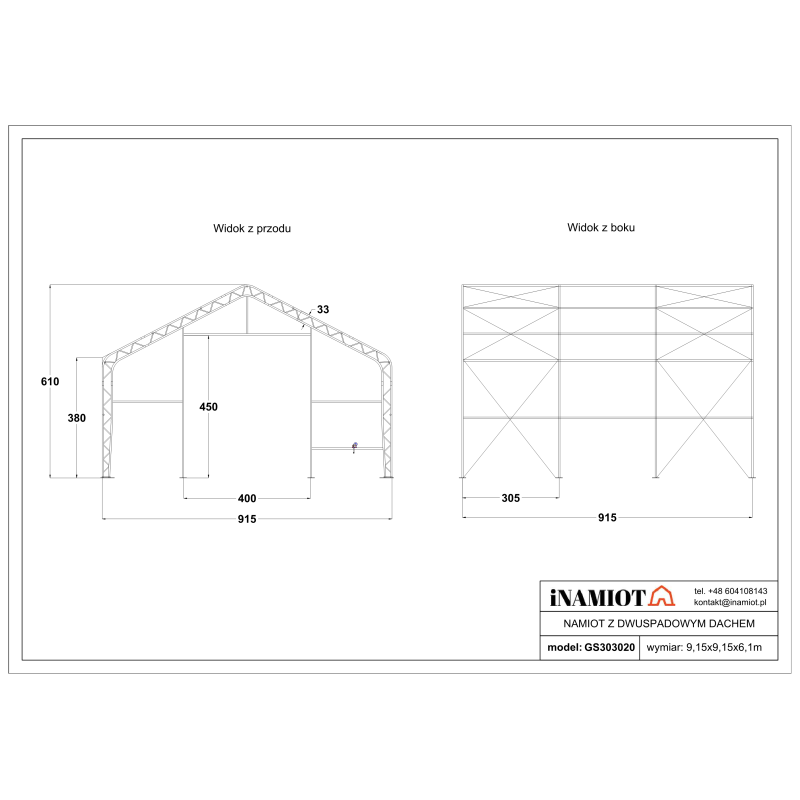

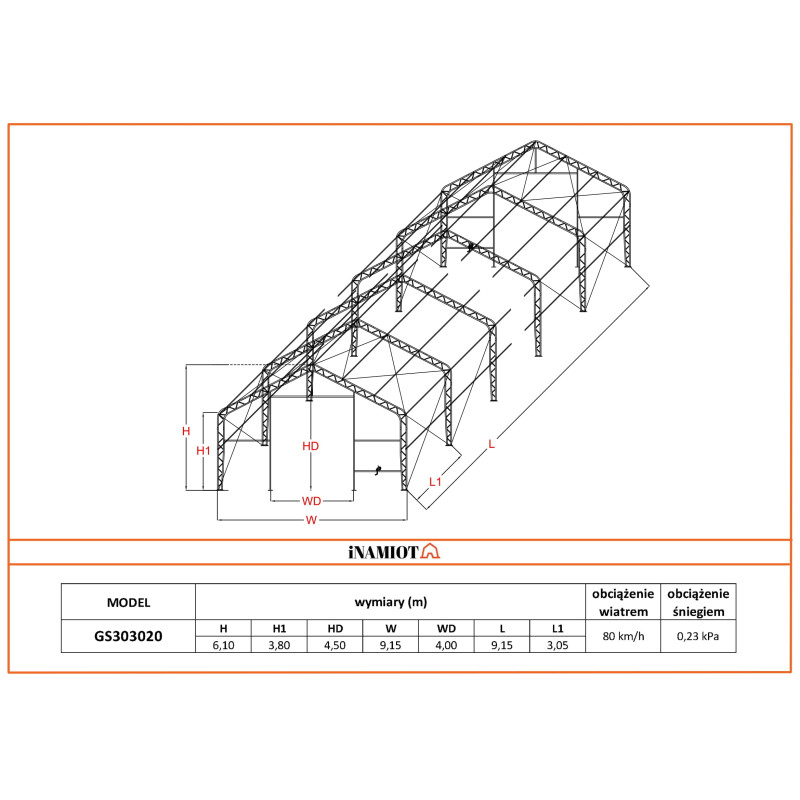

| Data sheet | Specification |
|---|---|
| Tearing strength of PVC tarpaulins EN ISO 13934-1 | 3600N (360 Kg) |
| UV protection: 50+ according to EN 13758-1:2007 | YES |
| Thickness of PVC tarpaulin | 900 g/m2 |
| Double truss frame | YES |
| Width (m) | 9.15 |
| Length (m) | 9.15 |
| Door opening width (m) | 4.00x4.50 |
| Height (m) | 6.10 |
| Height of side wall | 3.80 |
| Curve interval (m) | 3.05 |
| Arc Φ (mm) | 48x1.50 |
| Purlin Φ (mm) | 48.0x1.5 |
| Snow load (kPa) | 0.28 |
| Maximum wind speed (wind load) (km/h) | 80 |
| Number of entrance gates | 2 |
Tent hall construction and materials
The GS303020 9.15×9.15 m hall from Inamiot.EN is a robust structure that is ideal for a variety of applications as a storage or shelter for equipment. Thanks to the use of galvanised steel tubes, it is characterised by extraordinary strength and corrosion resistance, which guarantees long-lasting use even in demanding weather conditions. The quality of the materials used to construct this tent halls is first-class. The heavyweight PVC fabric forms the sheathing for the roof and side walls, protecting the interior from harmful external influences such as rain and UV radiation. This keeps everything inside dry and safe. The GS303020 9.15×9.15 m model is distinguished by its ability to utilise the full surface area thanks to its vertical side walls. The technological solutions used and the careful workmanship make this hall reliable and functional, which is appreciated by Inamiot.EN customers all over EN.
Hassle-free access and ease of use
The GS303020 9.15×9.15 m model from Inamiot.EN is an innovative solution that combines convenience of use with modern functionality. The element facilitating access to the interior of the hall is the roller doors, which have been designed for maximum convenience. Their mechanism is extremely easy to operate, which makes opening and closing the doors fast and effortless. This guarantees free entry and exit of even large vehicles, which is extremely important in industries that require frequent movement of goods.
An additional advantage of the GS303020 9.15×9.15 m hall is its easy assembly, which requires no special equipment or advanced technical knowledge. Thanks to its clever design, all the components are designed to be connected in a simple and intuitive way. This not only saves time, but also minimises potential errors during assembly, resulting in a long-lasting and trouble-free operation. All hall components and parts are supplied in a packing crate, making assembly easy to organise.
For more information or inquiries, please visit our contact or our customisation page.
