Tent shed for beef cattle 15×18 m

ON4660
€20,079.56
VAT included
The price has not changed
Delivery within 3-4 days
Follow our tips for purchasing and installing this product:
phone +48 604 108 143
Monday - Friday 8.30 - 17.30

Shed for beef cattle 15×18 m - a modern alternative to traditional stables

The 15×18 m marquee shelter for beef cattle is a construction designed for intensive breeding of beef cattle. Its wide range of applications, fast assembly and flexible adaptation to the farm's needs make it an attractive alternative to traditional brick barns. It is a solution that combines durability with mobility and makes it possible to create a fully-fledged livestock infrastructure in a short period of time, without having to go through complicated construction processes.

The year-round tented cattle shed provides optimal living conditions for the animals and full control of the working space for the farmer. The structure is resistant to adverse weather conditions, easy to assemble and suitable for self-erection, which significantly reduces the investment cost.

Colour

No carriers available for this product.


No carriers available for this product.


Data sheet Specification
Thickness of PVC tarpaulin 900 g/m2
Double truss frame YES
Installation method Welding
Width (m) 14,92
Length (m) 18,30
Door opening width (m) [HC container]. 4.00x4.00 [4.30] m
Height (m) 5.00
Curve interval (m) 2.00
Arc Φ (mm) 60.0x1.80
Purlin Φ (mm) 60.0x1.50
Snow load (kPa) 0.28
Maximum wind speed (wind load) (km/h) 80

Durable construction and comfortable conditions for beef cattle

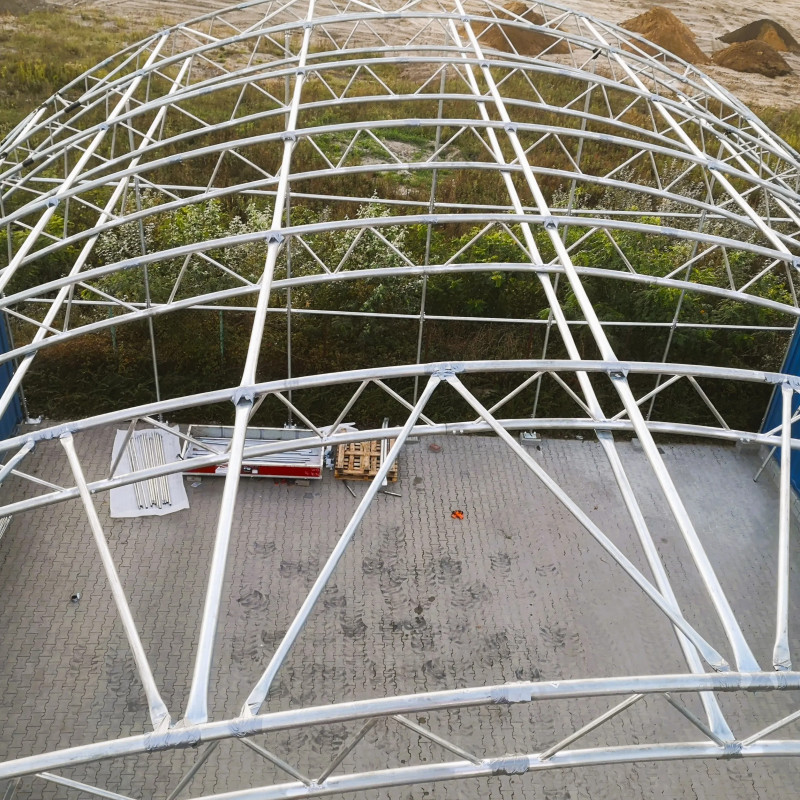

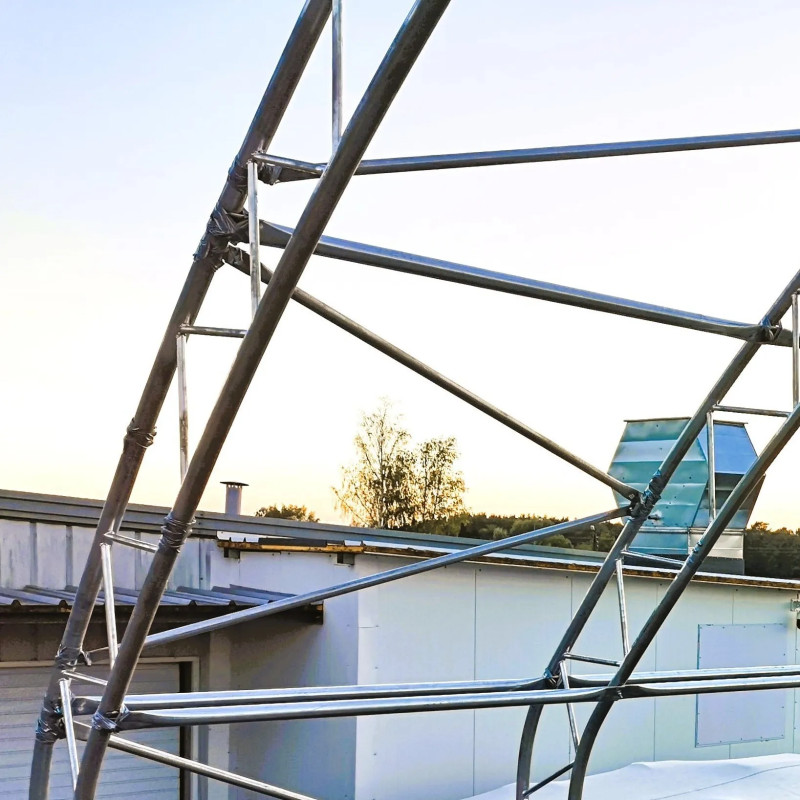

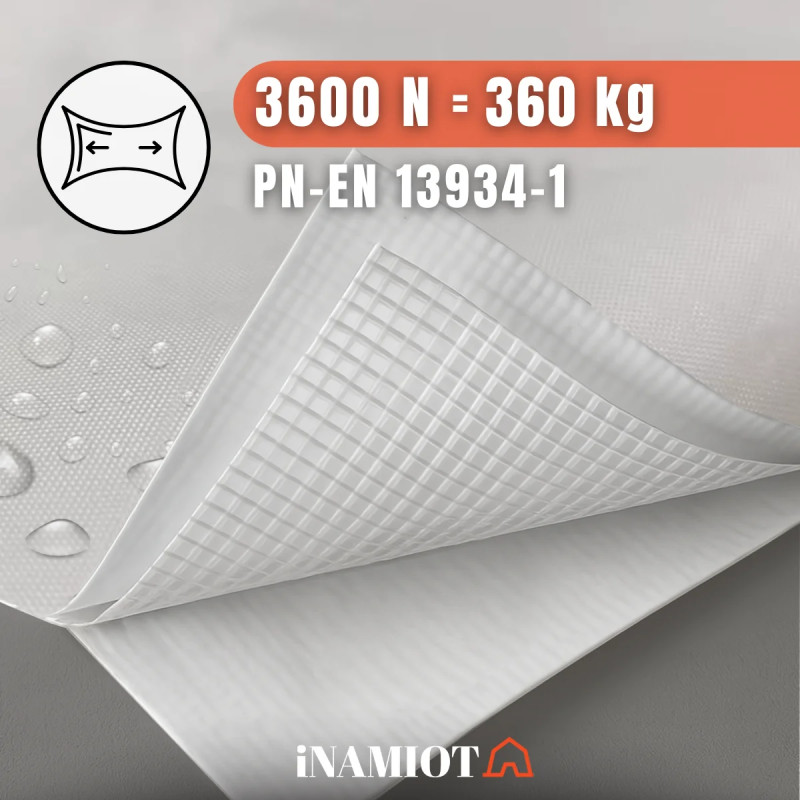

The marquee shelter consists of a steel frame made of galvanised profiles, which are corrosion-resistant and designed for harsh agricultural conditions. Additional reinforcements in the form of double arches and cross purlins give the structure high rigidity and resistance to wind and snow loads. The 900 g/m² PVC tarpaulin cover protects the animals from precipitation, UV radiation and wind, while also providing good ventilation and daylight.

Thanks to the structure's open design and high internal clearance, the farmer can plan the space freely - from the feeding and bedding areas to the equipment passage area. The facility works well in both free-stall and semi-open systems. If required, the shed can be closed seasonally with side tarpaulins.

Economic aspect - cheaper than building a brick barn

The cost of purchasing and assembling a 15×18 m tent shed for cows is several times cheaper than building a traditional brick barn. The savings result not only from lower material costs, but also from the lack of need for foundations, pouring, insulation or the involvement of construction teams. The shed can be founded on prefabricated concrete blocks that act as the wall and base - without the need for planning permission in most cases.

An additional advantage is the lead time - from order to installation usually only takes a few working days. Thanks to the possibility of self-assembly, the farmer also saves on labour. This is an investment that pays off already in the first seasons of use.

Fast assembly and universal use

The shed has been designed for self-assembly by the farmer. This significantly reduces costs. The modular design and logical labelling of the components allows the entire process to be carried out with basic tools, without the need for welding or earthworks. Detailed instructions and instructional videos available online make it easy to assemble the structure step by step.

The marquee shed for beef c attle can be used not only as a space for fattening cattle, but also as a seasonal storage for feed, equipment or straw. Its modularity makes it possible to expand it in the future and, if necessary, to dismantle it and move it to another location on the farm.

Bottom line - a sound solution at a reasonable price

The 15×18 m shed for beef cattle is a modern and cost-effective answer to the needs of modern agriculture. The robust steel construction, heavy-duty tarpaulin, the possibility of placing it on concrete blocks and quick and easy assembly make this product increasingly popular among livestock farmers.

If you are looking for durability, functionality and low investment costs - this shed is the perfect choice.
Contact us and order your finished set today - no paperwork, no downtime, no compromises.


For more information or inquiries, please visit our contact or our customising page.
