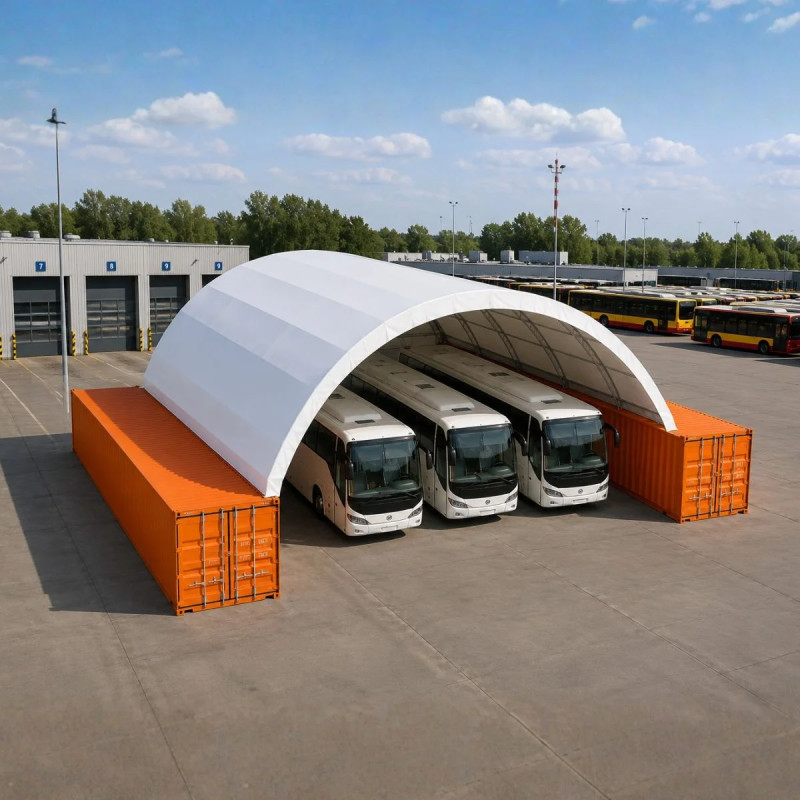

Canopy for the space between shipping containers GSC704020 21×12 m
Monday - Friday 8.30 - 17.30
The GSC704020 container shelters are an extremely robust and functional solution that, with dimensions of 21.35 m wide, 12 m long and 6.2 m high, are ideal for protecting a wide variety of storage, work and production spaces. The structure of this model has been designed to provide maximum strength and stability, while allowing quick and convenient assembly.
The modern container shelters feature a modular design based on strong steel arches and precision-fitted steel components. This makes it possible to assemble the canopy quickly and easily without the need for complex foundations, which is especially important for developments requiring mobility or temporary construction.

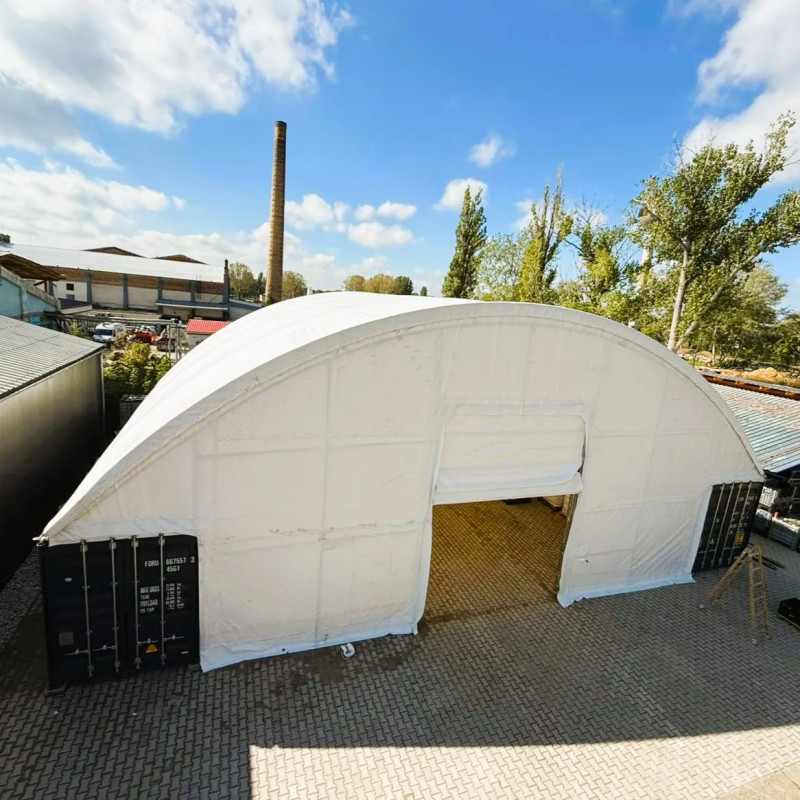

The canopy can be installed both on standard 40HC shipping containers, which meet the stability requirements in various wind zones when appropriately ballasted, and on "lego" type concrete blocks. This solution allows the structure to be tailored to individual needs and site conditions, while ensuring safety and durability of use.
Data sheet | Specification |
---|---|
Thickness of PVC tarpaulin | 900 g/m2 |
Installation method | Welding |
Width (m) | 21,00 |
Length (m) | 12.0 |
Height (m) | 5.00 |
Curve interval (m) | 2.00 |
Arc Φ (mm) | 76x2.5 |
Purlin Φ (mm) | 60.0x2.00 |
Snow load (kPa) | 0.28 |
Maximum wind speed (wind load) (km/h) | 80 |
You might also like
Storage tent 12.2 x 18.3 m GS406021
Arch Hall 326516P 9.76×20 m
Arch hall GSR404021S 12.2×12.20 m
The main areas of application for the canopy for shipping containers or concrete blocks.
With dimensions of 21.35 m wide, 12 m long and 6.2 m high, the GSC704020 canopy between shipping containers is widely used in many industries where it is necessary to protect materials, equipment and vehicles from adverse weather conditions. In warehouses and storage facilities, it effectively protects construction, agricultural and industrial materials from rain, snow and UV radiation. In production facilities and workshops, it acts as a cover for workstations and machinery, ensuring the comfort and safety of equipment. In the construction and logistics industry, the canopy serves as a temporary covering for construction sites and loading zones, facilitating the organisation of work regardless of the weather. In agriculture, it protects machinery, fodder and other equipment, preventing them from wearing out quickly. In addition, it is used in the mining industry, where it effectively shields mining equipment and consumables in difficult terrain. As a result, the GSC704020 allows for quick and cost-effective expansion of storage space, increasing the usable area without the need to invest in permanent buildings.
Key features and specifications of the GSC704020 canopy
-

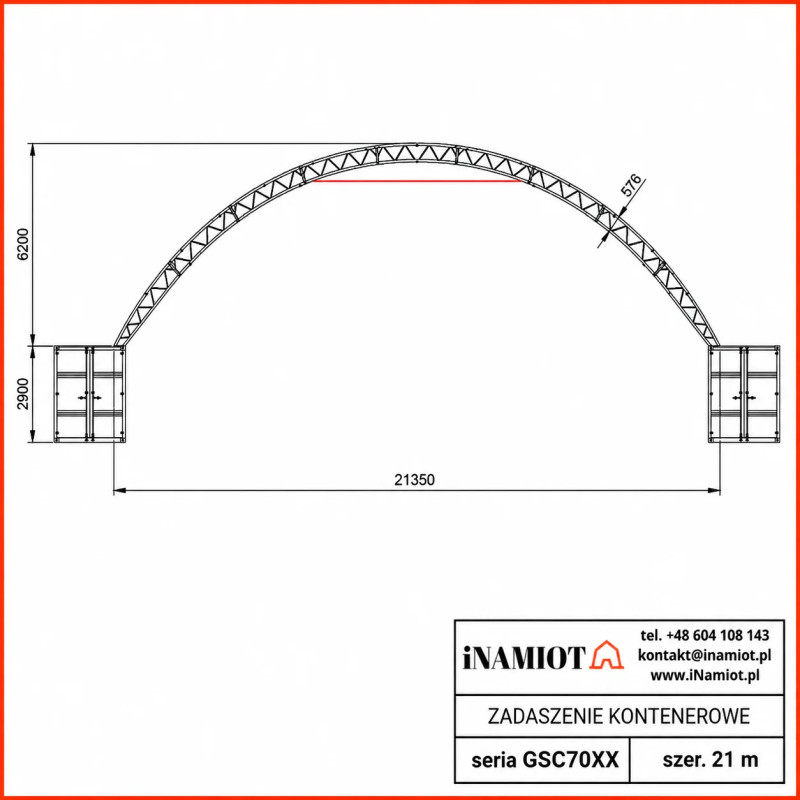

Dimensions: 21.35m (W) x 12m (L) x 6.2m (H) - providing a large covered usable area.
-

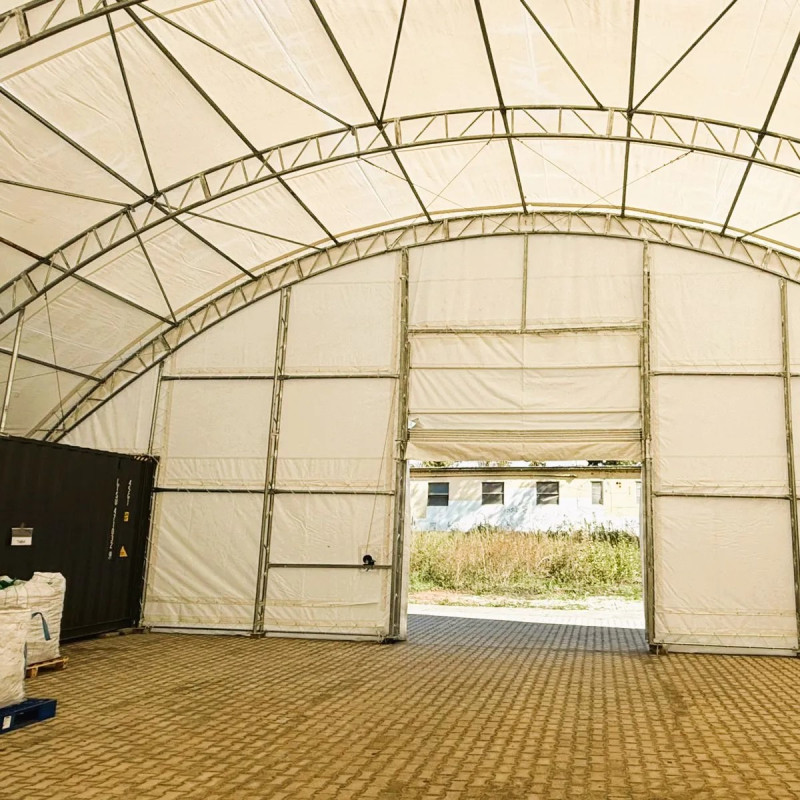

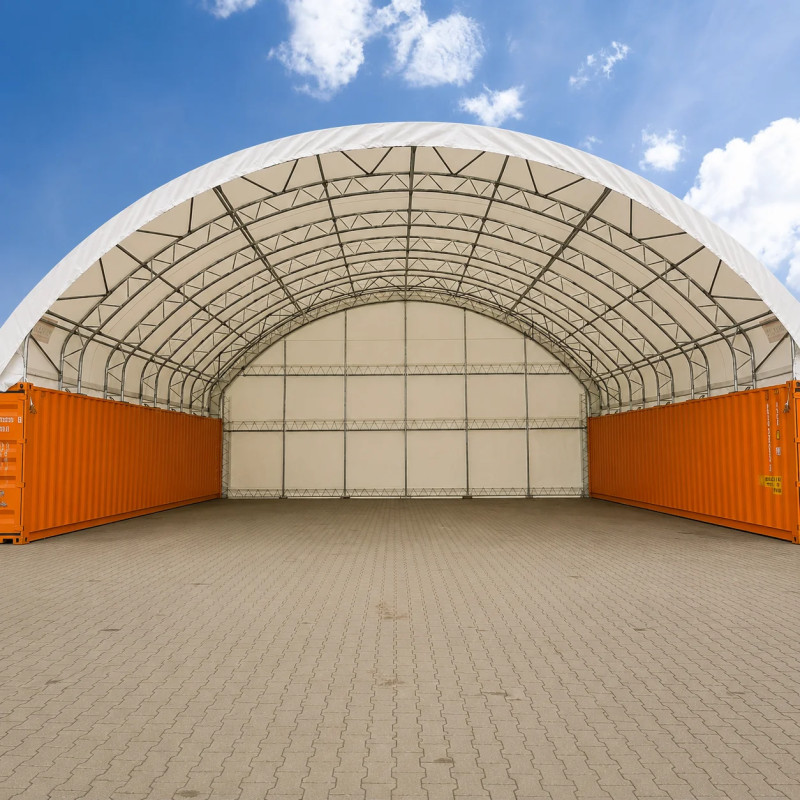

Steel structure: made from galvanised 76mm x 2.5mm diameter arch tubes - double truss frame 576mm high and 60mm x 2mm purlins, ensuring corrosion resistance and durability.
-

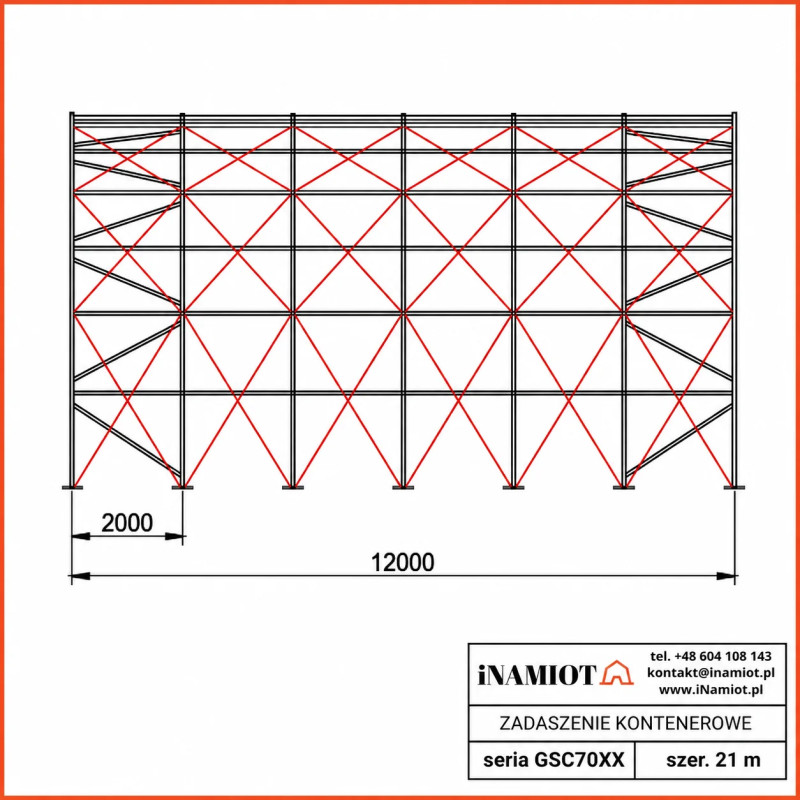

Additional steel cable bracing: reinforces the structure, increasing its stability, especially in difficult weather conditions.
-

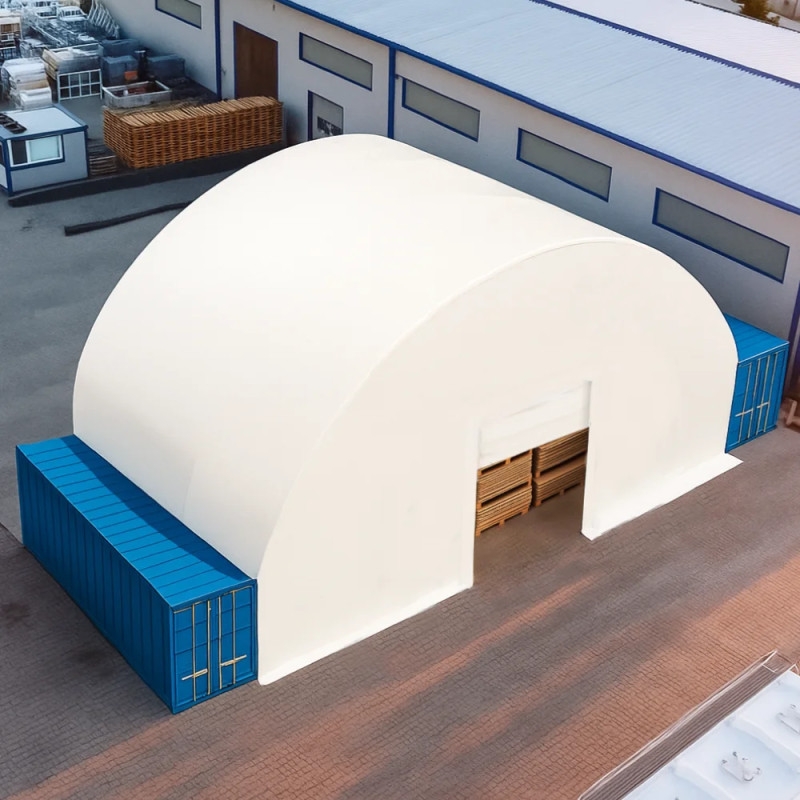

Mounting on 40HC containers: the canopy can be firmly fixed to shipping containers, which must be loaded with the appropriate ballast adapted to the local wind zone, thus protecting the structure from tipping or shifting.
-
Mounting on concrete blocks: the structure is compatible with embedding on lego-type concrete blocks, enabling the canopy to be set up stably and permanently even on uneven ground, without the need for foundations.
-
Can be installed on the inside or outside of the container: flexibility to adapt to site conditions and specifics of the development.
-
No end panels as standard: allows customisation of the canopy.
Summary information on the canopy for 21x12m shipping containers or concrete blocks:
In addition, the design of the GSC704020 is resistant to weather conditions and mechanical stresses, making it ideal for applications in sectors such as logistics, agriculture, industry or construction.
The marine container canopy can be used as a warehouse, workshop or temporary workspace, providing effective protection from rain, snow or excessive sunlight.
Thanks to its robust construction and versatility of installation, the GSC704020 staggered concrete block canopy provides an effective and economical solution for companies looking for robust and easy-to-install canopy spaces that can be quickly adapted to meet changing business needs.
For more information or inquiries, please visit our contact or our customising page.
