Arch halls 5012025R 15.25×36.6 m

5012025R
€32,764.51
VAT included
Follow our tips for purchasing and installing this product:
phone +48 604 108 143
Monday - Friday 8.30 - 17.30

Arch halls for agriculture

The arch hall from from inamiot.co.uk is extremely robust and reliable. The galvanised steel frame is made from Q215 steel tubes and is specially designed for use in extreme weather conditions. The structure of the arched tent hall is reinforced with horizontal and diagonal struts to increase structural stability. The fabric of the arch tent is made of heavy-duty 900g PVC as standard.

Our arched tent halls can be laid out on the ground, on lego-type concrete blocks, retaining shears and other permanent structures. Concrete walls combined with a canopy make a great storage facility for bulk materials, sand, aggregates, fodder, fertilisers, a place for sorting rubbish, Livestock field shelters.

The hall can be adapted with front and rear panels (walls) and is suitable for use all year round.

Colour

favorite
favorite_border
In production

print Print this offer
Data sheet Specification
Double truss frame YES
Width (m) 15.24
Length (m) 36.60
Door opening width (m) 5.49x4.89
Height (m) 7.62
Curve interval (m) 3.05
Arc Φ (mm) 60.0x1.80
Purlin Φ (mm) 60.0x1.50
Snow load (kPa) 0.28
Maximum wind speed (wind load) (km/h) 80

You might also like

PERFECT FOR USE AS:

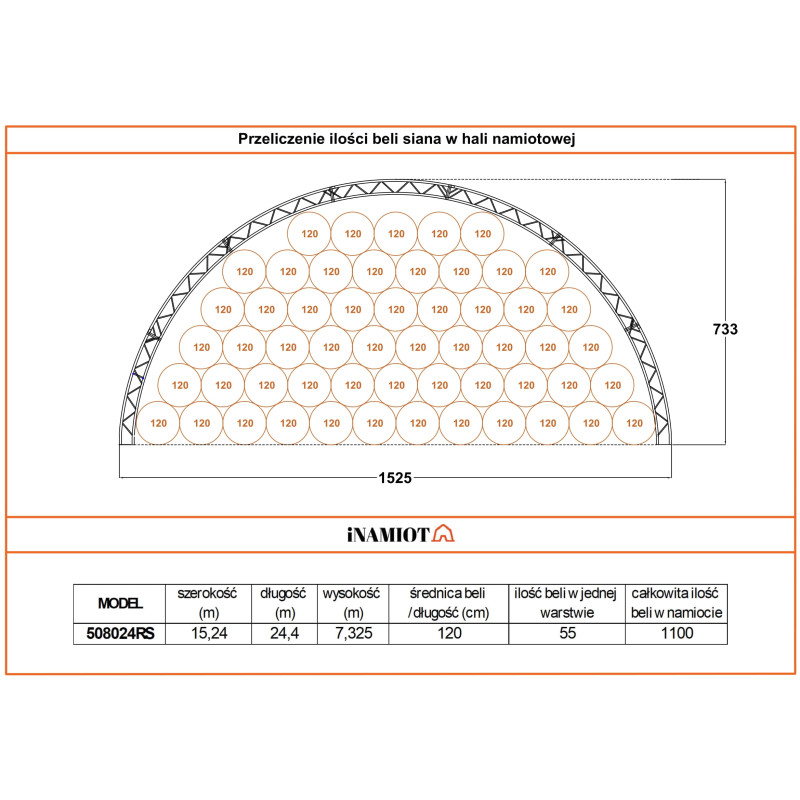

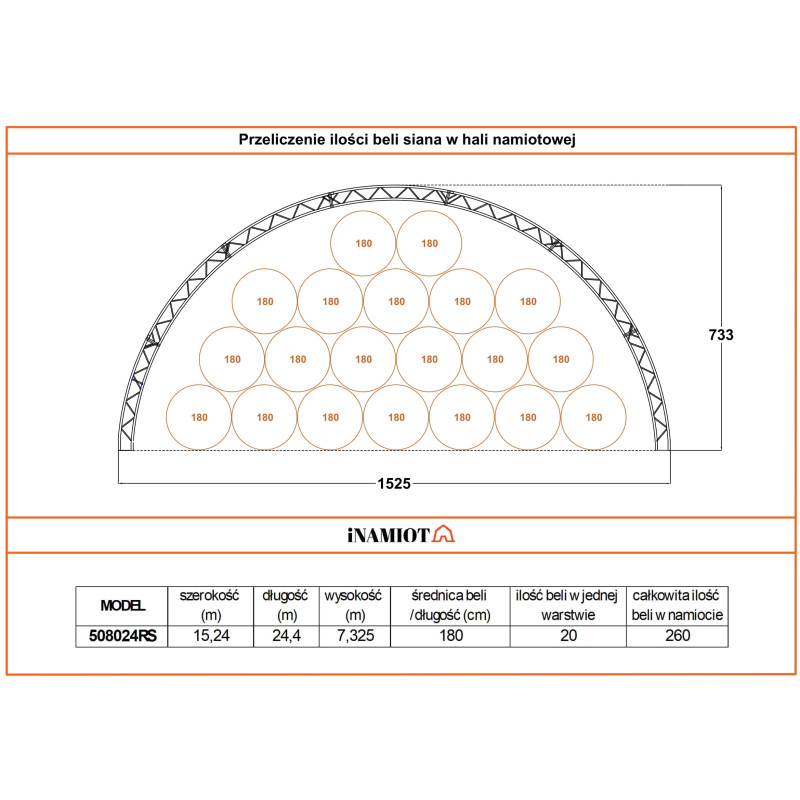

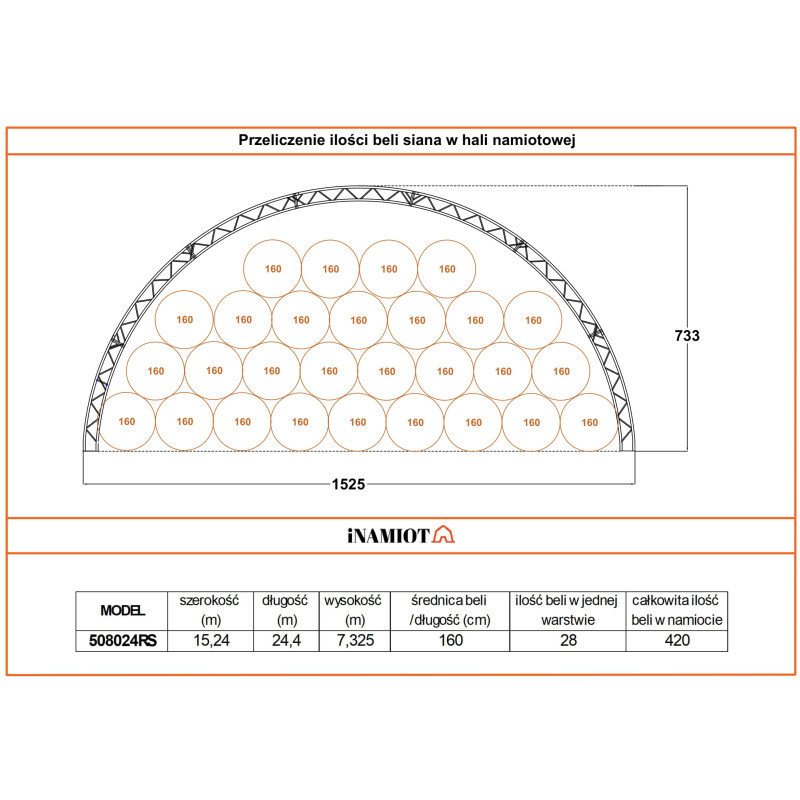

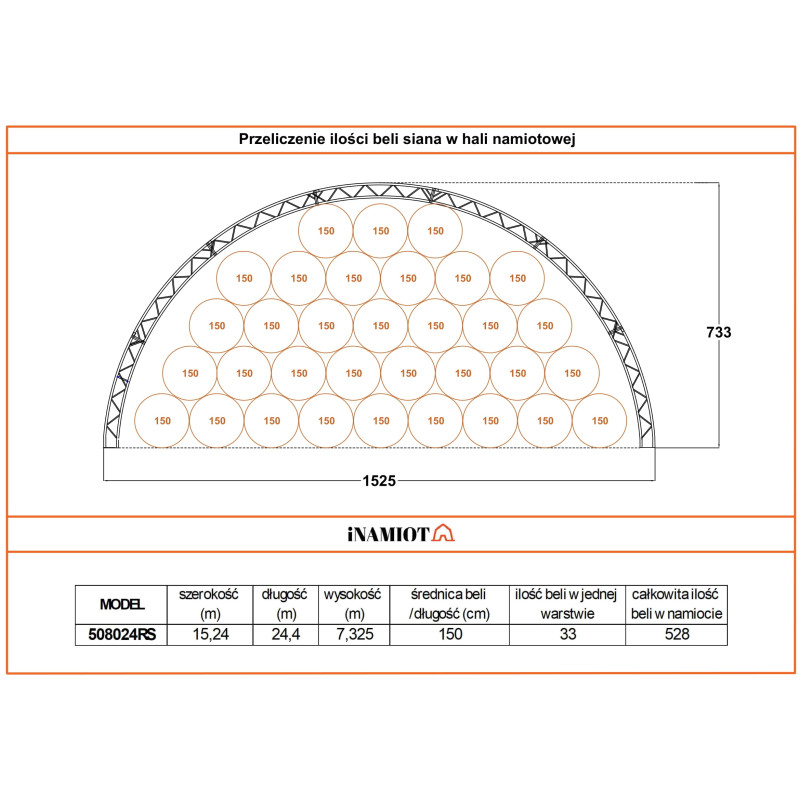

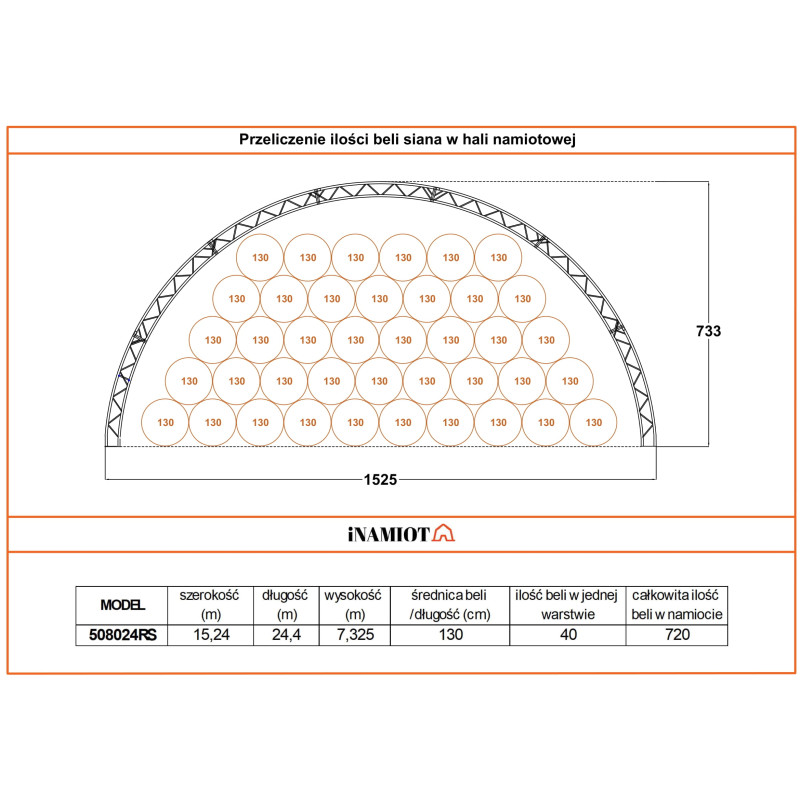

  • Storage for hay and straw bales
  • Agricultural warehouses
  • Warehouses for goods
  • Industrial warehouses
  • Car sheds
  • Garages for lorries, buses, vans and boats
  • Event and exhibition marquees
  • Trade marquees
  • Curved roof halls
  • Curved roof halls for agriculture
  • Agricultural halls
  • Cattle sheds

Key features:

  • Versatile, durable and cost-effective tents
  • Trussed frames are fitted with additional steel wires for added strength
  • High-quality, double-sided PVC-coated polyester fabric for longer life
  • Year-round tents
  • Retractable and roll-up gates provide large-scale clearance and increased security
  • Extra heavy-duty 750g PVC tarpaulin
  • Seamless roof covering for excellent stability
  • Large capacity
  • 100% waterproof
  • Tear-resistant
  • Self-cleaning ability
  • UV-resistant fabric
  • Lifespan of double-gridded tubes 10-15 years
  • Lifespan of fabric 7-10 years, depending on fabric type and environmental conditions

Advantages:

  • No planning permission required*
  • Economical compared to the costs associated with building a permanent structure
  • Easy and inexpensive to install and dismantle
  • Additional flexible space
  • Longer service life
  • Convenient and portable
  • *Although most of our products fall into the category of temporary structures and do not require planning permission, we recommend obtaining local council approval to avoid government control.

To best fit in with the natural landscape, Arched Storage Tents are available in white, light grey, dark grey, grass green and army green. Tents are also available in a range of colours - white with green finish, white with grey finish and white with blue finish.

All tents and shelters come with a handy manual that will serve as a step-by-step guide for safe assembly and installation.

Safety precautions:

  • Please read the manual carefully before assembling and dismantling the tents.
  • Ensure that the tent cover is always free of snow.
  • Please dismantle tents in the event of hurricanes and heavy snowfall.
  • Make sure the tarp is away from heat sources.
  • Remember to re-tension the roof covering once or twice a year.
