Cow shed 12x12 m CTL4040

CTL4040
€9,113.73
VAT included
The lowest price of this product in the last 30 days before the discount was €3,736.98 gross
Follow our tips for purchasing and installing this product:
phone +48 604 108 143
Monday - Friday 8.30 - 17.30

Cow wellbeing in the pasture - a 12x12 m pasture shed - model CTL4040

Pasture farming for cows, whether dairy or beef, is becoming increasingly important in modern agriculture. We have therefore developed Livestock field shelters with a lightweight construction to provide shelter from rain and sunshine while grazing on the meadow. Thanks to the covered area to which the cattle have free access, watering and feeding the animals is made easier. The 144-square-metre area under a roof made of sturdy PVC tarpaulin and rubbed-down side walls provides respite for the cattle on hot days, and shelter from the rain.

favorite
favorite_border
In production

print Print this offer
Data sheet Specification
Thickness of PVC tarpaulin 610 g
Width (m) 12
Length (m) 12.0
Height (m) 5.00
Side wall height 2.60
Curve interval (m) 2.44
Arc Φ (mm) 60.0x1.80
Purlin Φ (mm) 40x1.50
Snow load (kPa) 0.28
Maximum wind speed (wind load) (km/h) 80

You might also like

Aesthetic and robust design of the CTL4040 fattening shed

The robust tarpaulin on the roof of our 12x12 m fattening cattle shed in green blends in perfectly with the pasture landscape. The system for securing the tarpaulin to the structure of the pasture shed consists of tension belts and elastic ropes that adapt to the tension of the roof fabric with changing weather conditions. This ensures that our Livestock field shelters' tarpaulins always adhere perfectly to the galvanised structure. It is important that the tarpaulin is well tightened, because a poorly fastened tarpaulin will vibrate in the wind and make noise, which is disturbing to the animals.

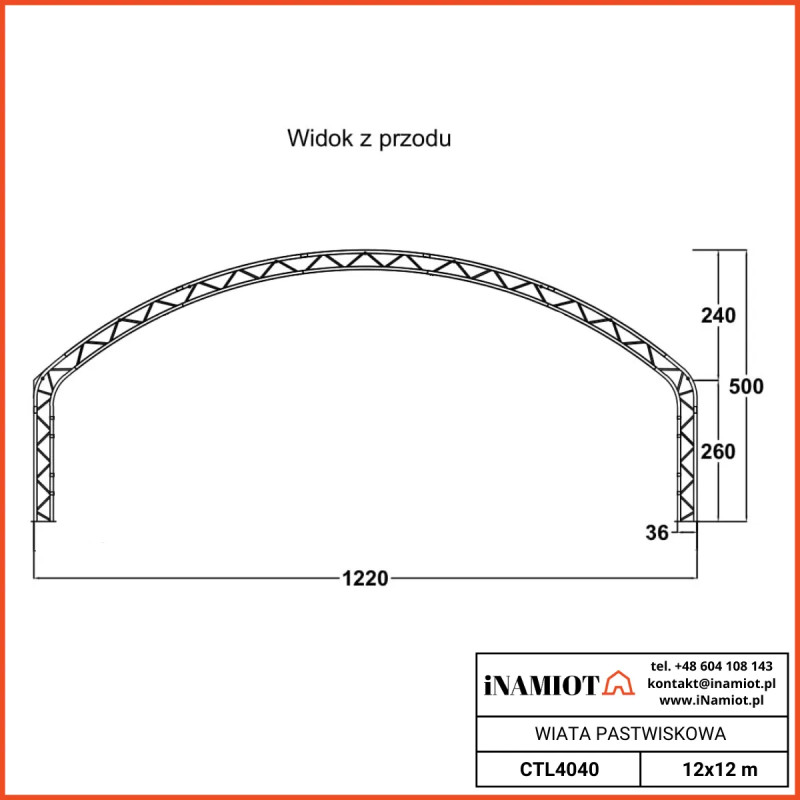

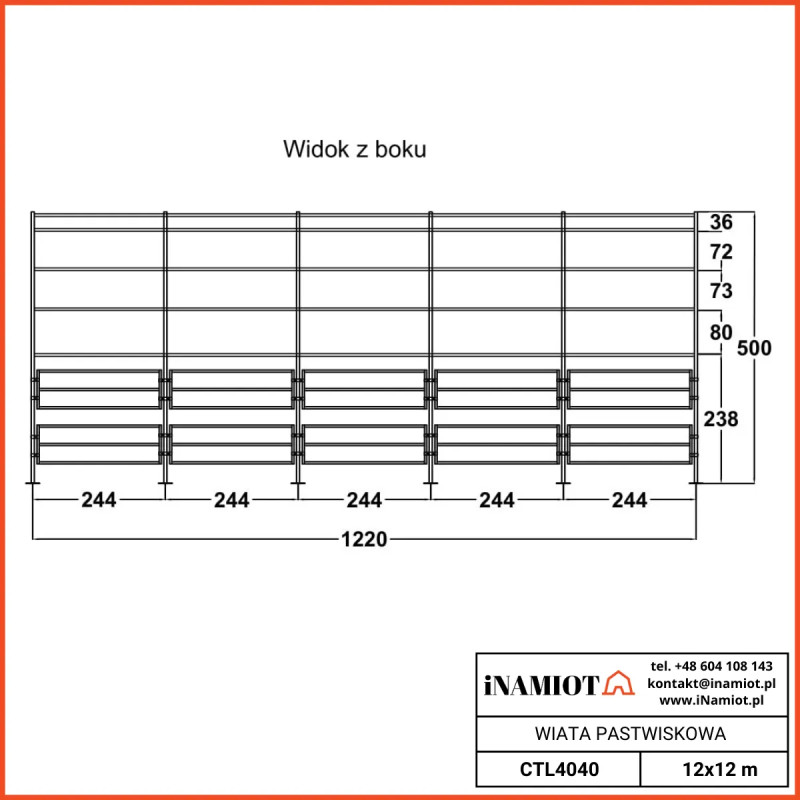

A 12x12 pasture shed without supports inside must have a solid construction. This is why we decided to use high-grade steel and a double truss frame. Such materials and workmanship guarantee stability even in very severe weather conditions. Additional reinforcement under the roof of the Livestock field shelters increases the rigidity of the whole.

Open walls - better ventilation

The company Inamiot.pl offers 3 product lines - animal pasture shelters. Each model has a slightly different application. The CTL model is an open type animal shelter. It has no front or back wall. The sides are not covered with a tarpaulin. This model of the CTL 4040 Livestock field shelters is best suited to seasonal grazing of animals in the meadow. It provides cattle with temporary shelter and protection from the sun and rain.


















      For more information or inquiries, please visit our contact or our customising page.
