Aircraft hangars GS464820 14×14.64×6.00 m

GS464820
€18,693.01
VAT included
Follow our tips for purchasing and installing this product:
phone +48 604 108 143
Monday - Friday 8.30 - 17.30

Aircraft Hangars.

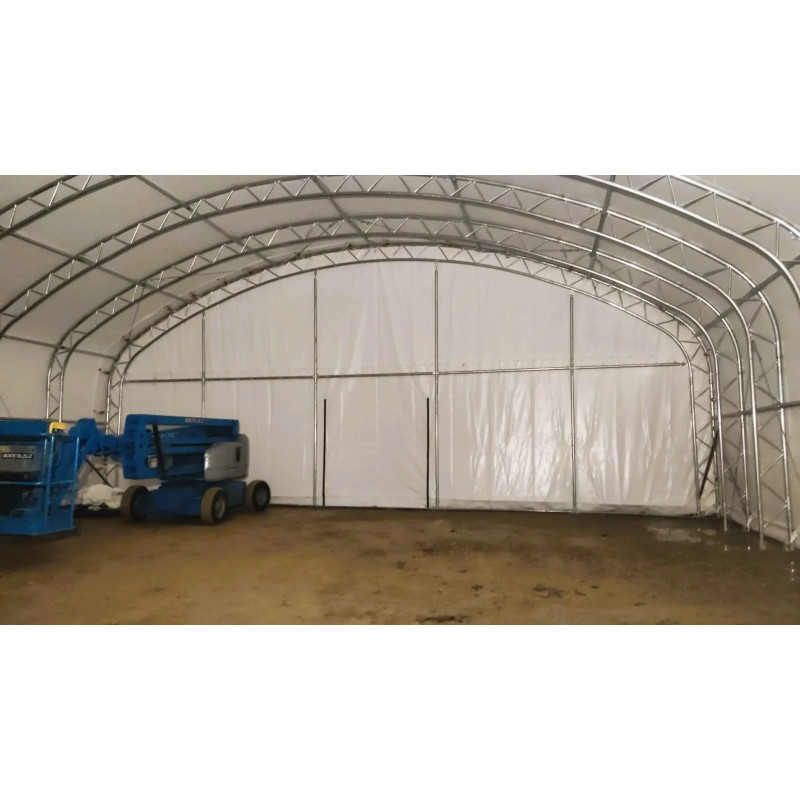

Tented aircraft hangars from inamiot are an affordable solution for storing small aircraft. The tented aircraft hangar is a sturdy contraption that will provide shelter from wind, rain, snow for your aircraft. The inamiot tent hangars with double trusses are extremely strong, robust and reliable. The double truss steel frame, which is made of Q215 steel tubes, and the double-sided PVC-coated polyester fabric are specially designed for use in extreme weather conditions. The thickness of the PVC is 750 gsm in the basic version and 900 gsm in the reinforced version.

We can customise all our products to meet our customers' individual needs.

The gate's dimensions are 11.0 x 3.30 m! On the back wall the gate is 2.5×2.5 m!

favorite
favorite_border
In production

&t=5s

&t=5s

print Print this offer
Data sheet Specification
Thickness of PVC tarpaulin 900 g/m2
Double truss frame YES
Width (m) 14.0

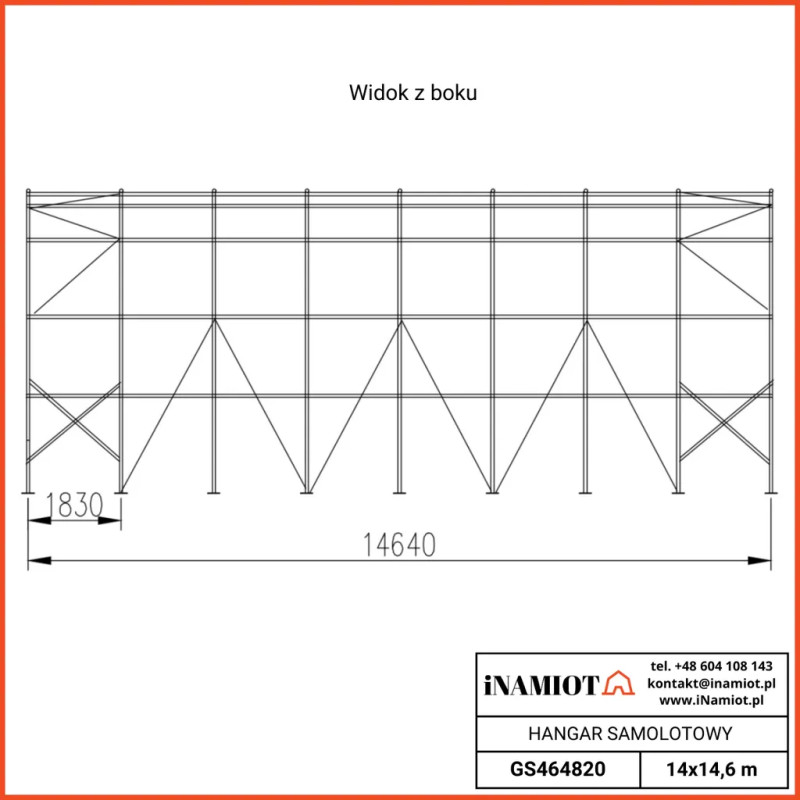

Length (m) 14.64
Door opening width (m) 11.0x3.30
Height (m) 6.0
Side wall height 3.30
Curve interval (m) 1.83
Arc Φ (mm) 60.0x2.00
Purlin Φ (mm) 60.0x1.50
Snow load (kPa) 0.28
Maximum wind speed (wind load) (km/h) 80

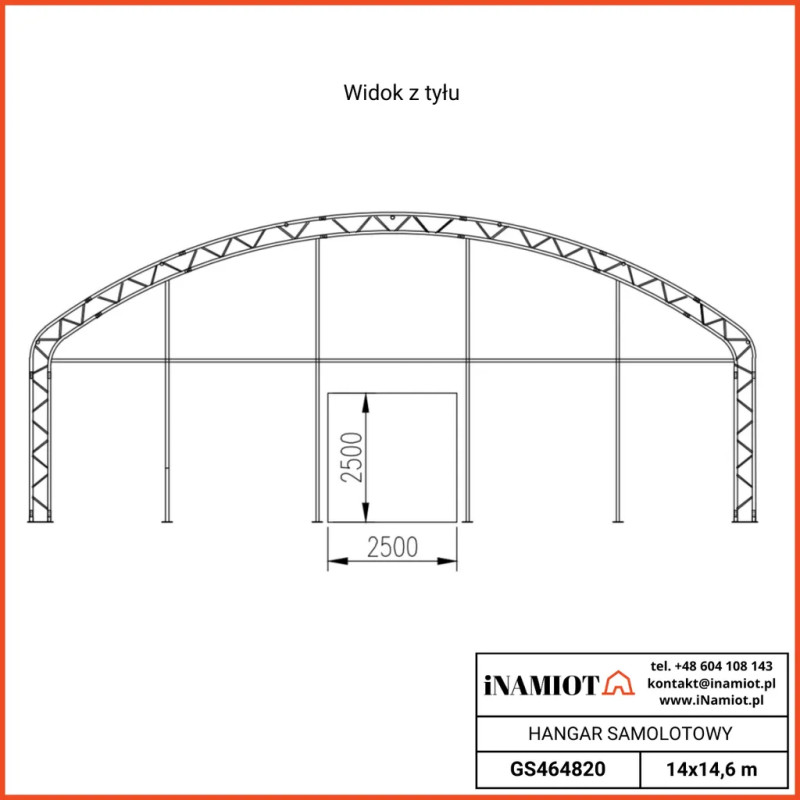

Tylne drzwi 2.50x2.50

You might also like

EXCELLENT FOR USE AS:

  • Aircraft hangars
  • Hangar/aircraft storage
  • Aircraft storage
  • Industrial warehouses
  • Agricultural warehouses
  • Garages for lorries, buses, vans and boats
  • Garages for agricultural machinery, tractors, sprayers
  • Event and exhibition marquees
  • Commercial tents

Key features:

  • Versatile and durable
  • Double trussed frames are fitted with additional steel wires for added strength
  • High-quality, double-sided PVC-coated polyester fabric for a longer lifespan
  • Year-round tents
  • Side-sliding gates
  • Extremely robust enclosure and double trussed frames to withstand harsh weather conditions
  • Seamless roof covering for excellent stability
  • Large capacity100% waterproof
  • Tear-resistant
  • Self-cleaning capacity
  • Fire- and UV-resistant fabric
  • Lifespan of tubes with double grating 10-15 years
  • Lifetime of fabric 7-10 years, depending on fabric type and environmental conditions

Advantages

  • No planning permission required*
  • Economical compared to the costs associated with building a permanent structure
  • Easy and inexpensive to install and dismantle
  • Additional flexible storage space
  • Longer service life
  • Convenient and portable

*Although most of our products fall into the category of temporary structures and do not require planning permission, we recommend obtaining local council approval to avoid government control.

To best fit in with the natural landscape, double truss aircraft hangars are available in white, light grey, dark grey, grass green and army green. Tents are also available in a range of colours - white with green finish, white with grey finish and white with blue finish.

All tents and shelters come with a handy manual that will serve as a step-by-step guide for safe assembly and installation.

Safety measures

  • Please read the instructions carefully before assembling and dismantling the tents.
  • Ensure that the tent cover is always free of snow.
  • Please dismantle tents in the event of hurricanes and heavy snowfall.
  • Make sure the tarp is away from heat sources.
  • Remember to re-tension the roof covering once or twice a year.

Inamiot will accept requests to personalise a double truss tent. Bespoke tents can be supplied on request, but at an additional cost and longer delivery time.



For more information or inquiries, please visit our contact or our customising page.
