Concrete block canopy BC3320 10x6 m Premium

BC3320
€2,753.03
VAT included
The price has not changed
Delivery within 3-4 days
Follow our tips for purchasing and installing this product:
phone +48 604 108 143
Monday - Friday 8.30 - 17.30

The 10 x 6 metre BC3320 canopy is a modern and functional structure specially designed to be mounted on prefabricated 'lego' concrete blocks. This solution makes assembly extremely simple and quick, and the entire structure can be set up without the need for foundations or permanent earthworks. The canopy of the space between the concrete blocks is ideal as a solid protection for storage spaces, workstations and material and equipment storage areas. It is a versatile solution that, thanks to its modular design, can be used in many sectors of industry, agriculture, construction or recycling. It protects against rain, snow and excessive sunlight, ensuring safe and dry working and storage conditions. In addition, the canopy's ability to be quickly dismantled and relocated to another site makes it a very cost-effective and convenient product to suit changing customer needs.

Debug grup atrybutów

          Grupa: Colour (ID: 16)
      Typ: select
      Atrybuty: 2      Szczegóły:
              - Atrybut ID: 27, Nazwa: White, Wybrany: Tak              - Atrybut ID: 28, Nazwa: Green            ---


Colour

No carriers available for this product.


No carriers available for this product.

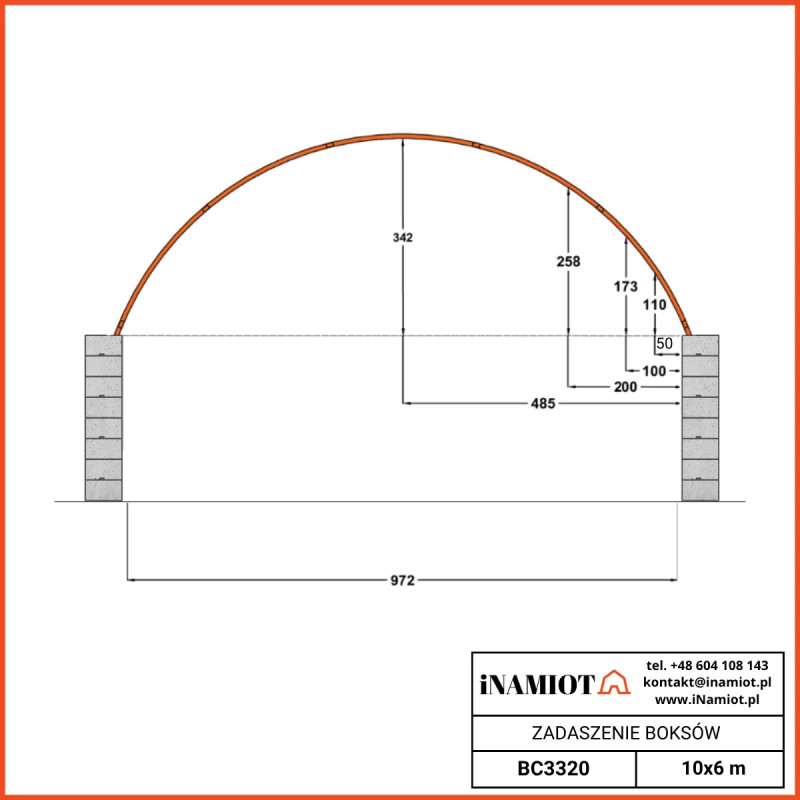

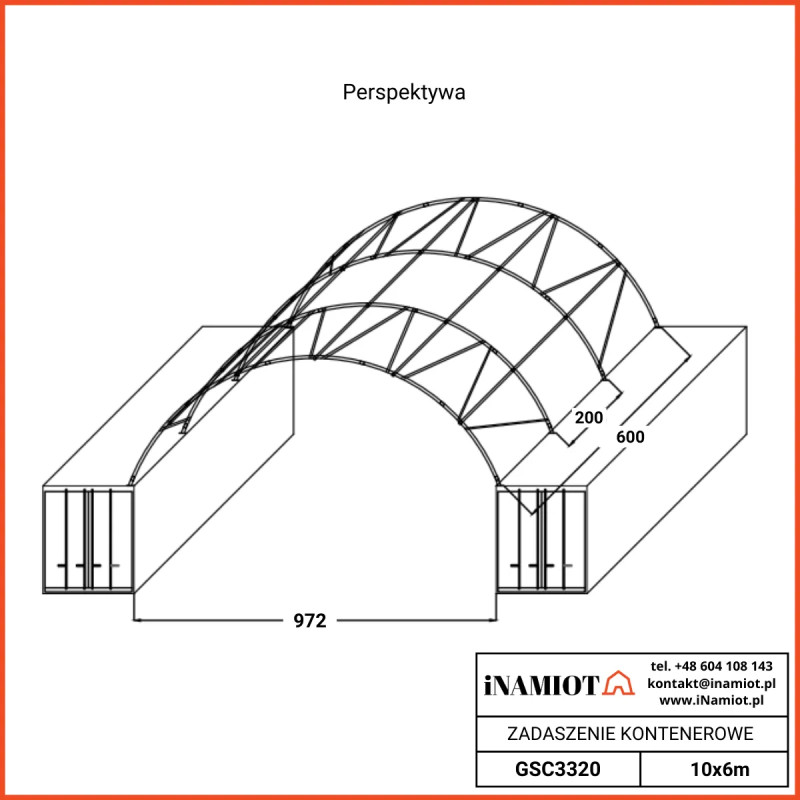

Data sheet Specification
Thickness of PVC tarpaulin 900 g/m2
Width (m) 10
Length (m) 6
Height (m) 3.60
Curve interval (m) 2.00
Arc Φ (mm) 60.0x1.80
Purlin Φ (mm) 8.00
Snow load (kPa) 0.28
Maximum wind speed (wind load) (km/h) 80
SzerokośWidth between shipping containers 9720 mm

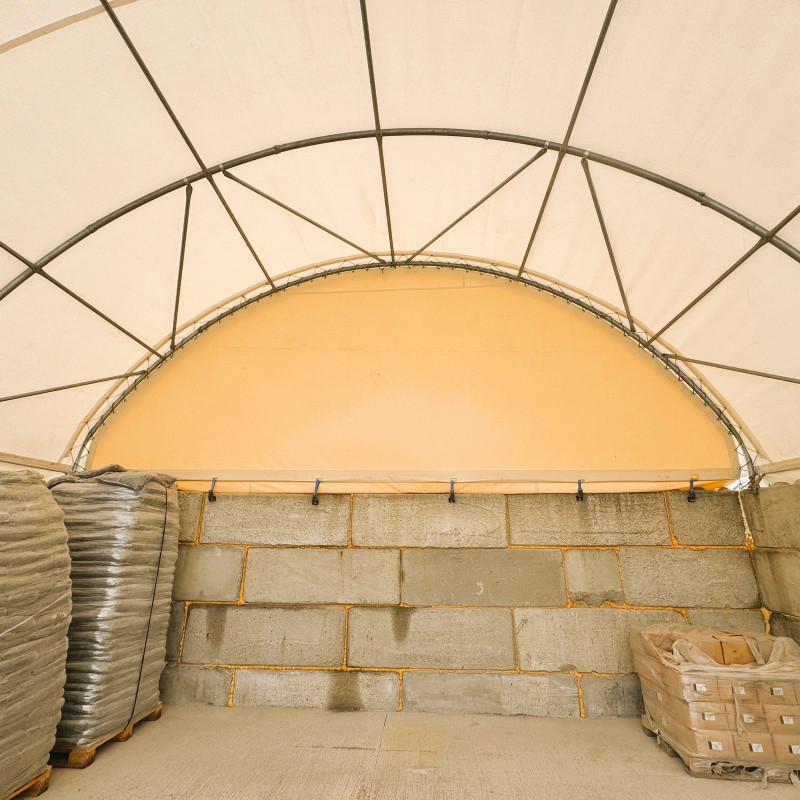

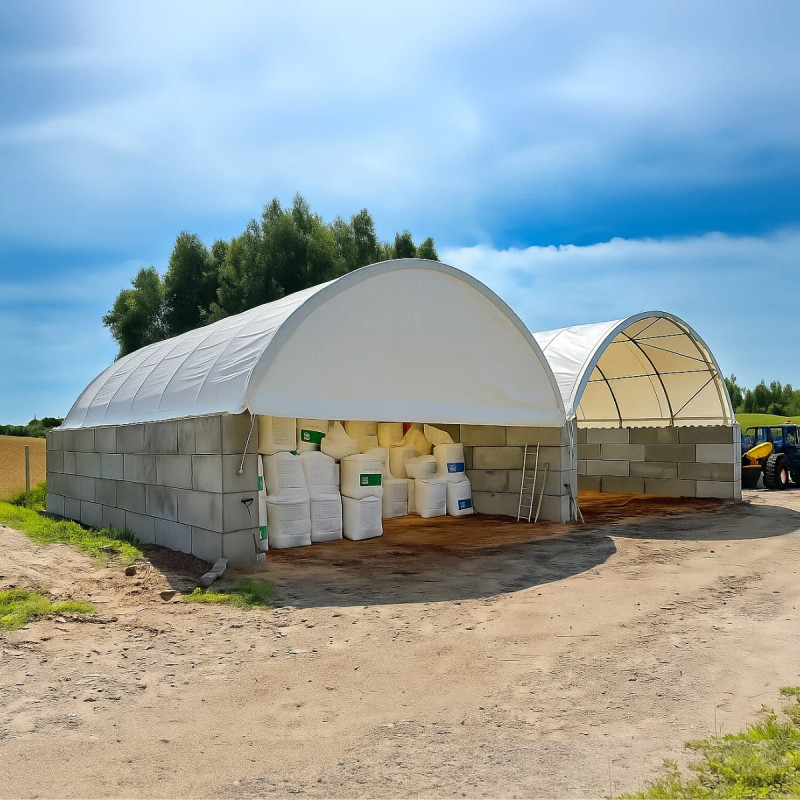

The canopy between the 10x6m concrete blocks is an ideal storage area for bulk materials.

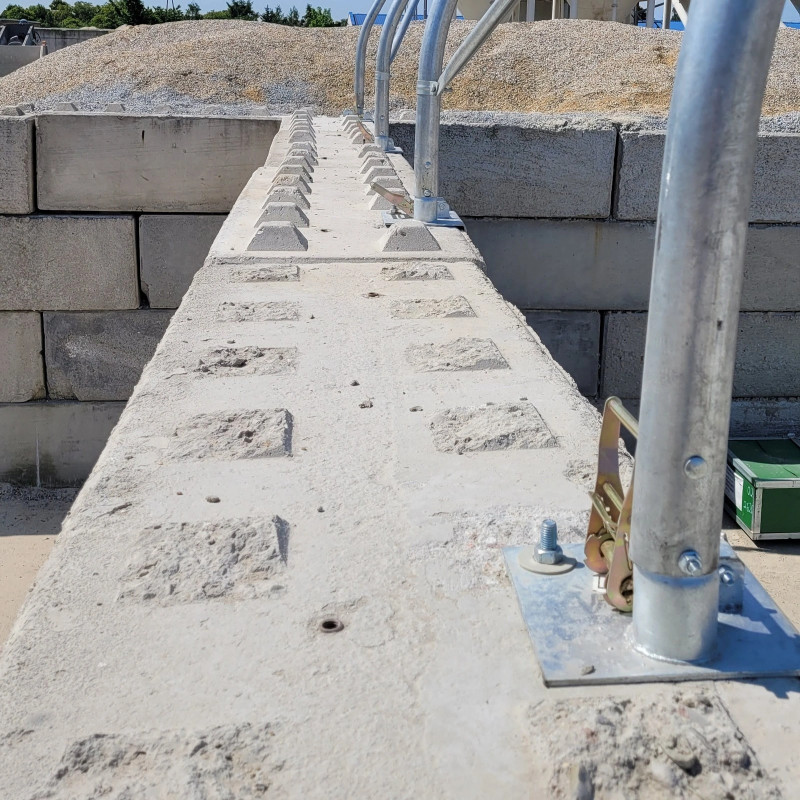

The concrete blocks on which the BC3320 canopy is mounted provide an excellent retaining wall that not only stabilises the structure, but can also act as a practical storage area for materials. Thanks to their massiveness and strength, the blocks are ideal for storing various types of loose materials such as aggregates, sand or woodchips. In addition, they provide a solid support for big bags of packaged materials, which can be conveniently stacked directly against the concrete wall. Such a solution allows optimum use of the storage space, facilitates the organisation of storage and prevents the spread of materials, while providing easy access to resources. The concrete block wall is thus not only the basis for a stable canopy structure, but also a practical and functional support for everyday work.

The 10 x 6 metre BC3320 canopy is a modern and functional structural solution designed for installation on lego concrete blocks. The product is ideal for the permanent protection of storage areas, workplaces and material stockpiles in a variety of industries such as industry, agriculture, recycling and construction.

Key features of the concrete block storage space:

  • Dimensions: 10 m wide x 6 m long - optimum space to secure loads and equipment.

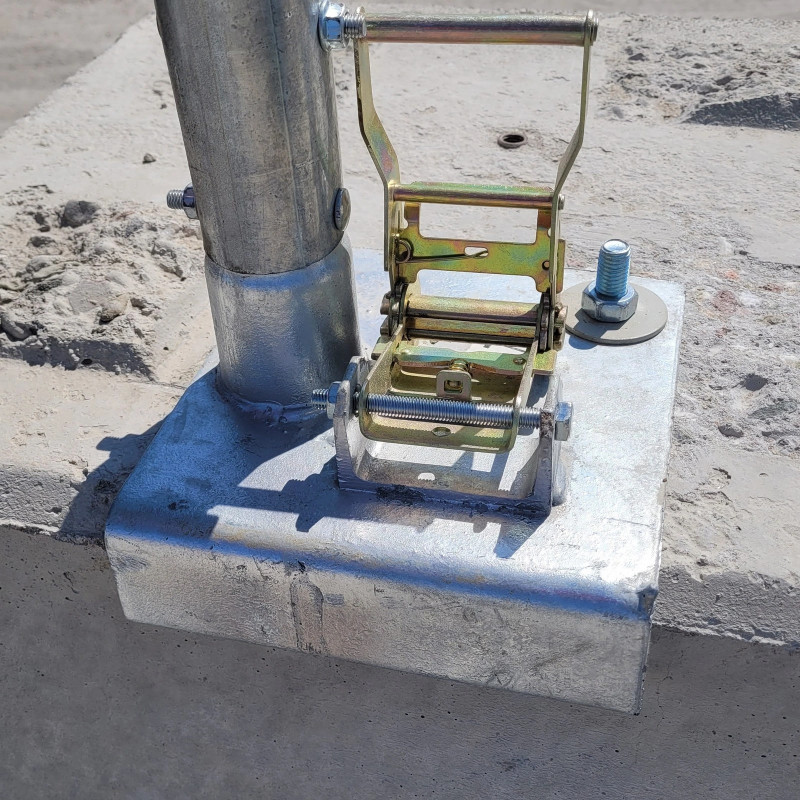

  • Installation on concrete blocks: Stable and fast erection of the canopy on precast concrete blocks, eliminating the need for foundations. Allows easy relocation of the structure and adaptation to changing needs.

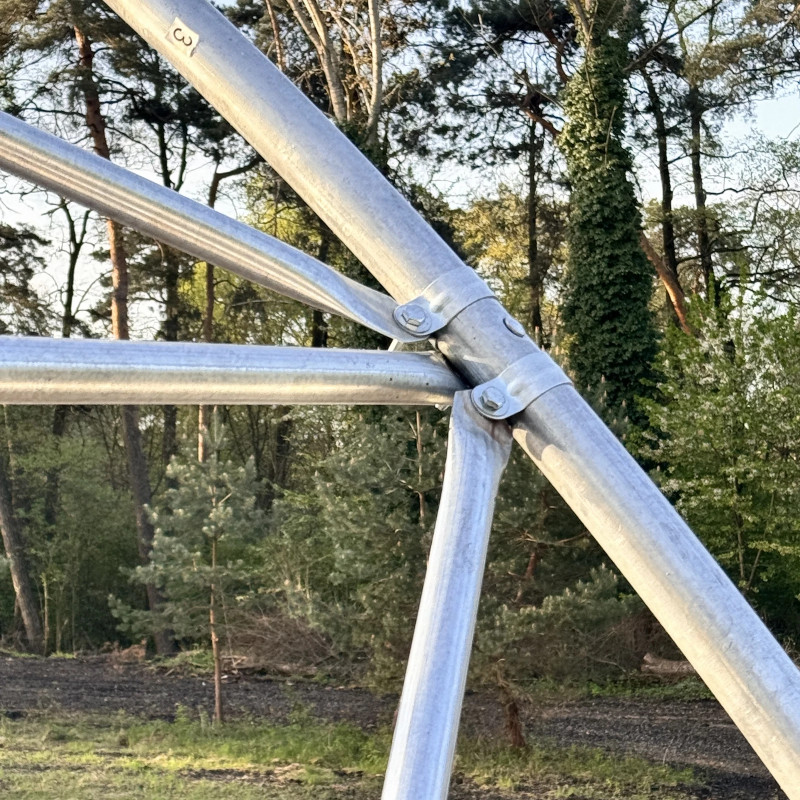

  • Robust steel construction: Made from high-strength, corrosion-protected steel profiles, guaranteeing stability even in high wind and snow loads.

  • 900 g/m² PVC tarpaulin: Thick, UV-resistant and weatherproof tarpaulin for long-lasting protection against rain, snow and sun.

  • Modular and expandable: The structure can be combined with other modules in the BC series to create larger storage areas tailored to individual customer requirements.

  • Quick assembly: The canopy is designed for efficient and intuitive assembly, significantly reducing the time needed to prepare a work or storage area.

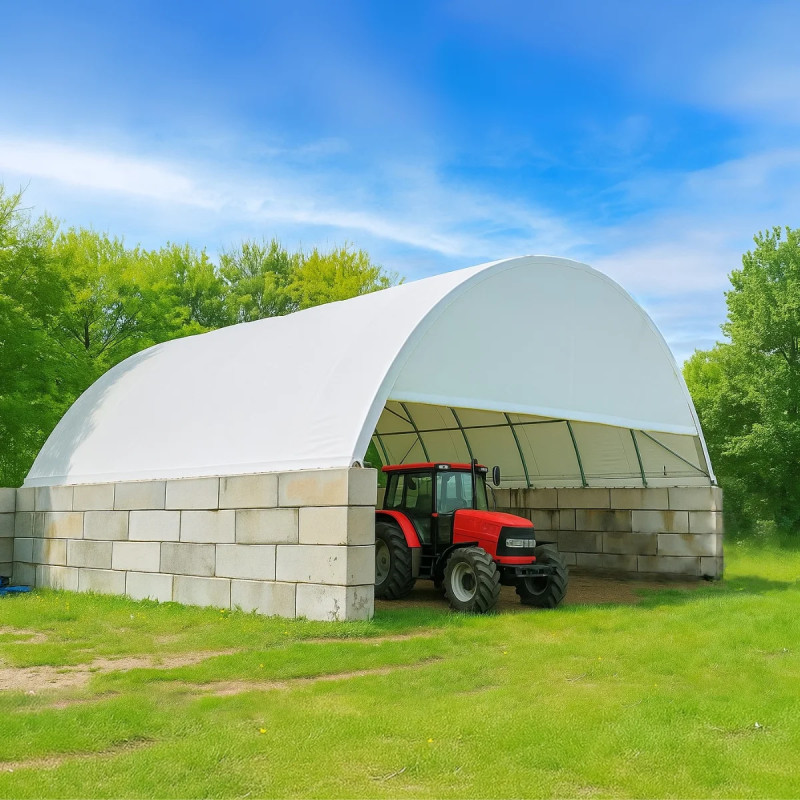

  • Industrial and agricultural applications: Ideal for protecting machinery, vehicles, building materials, feedstuffs and other goods requiring protection from adverse weather conditions.

Applications and benefits of investing in canopies:

BC3320 concrete block canopies provide effective space protection without the need for permanent installation in the ground, which is extremely important in areas that require flexibility and mobility. Thanks to its structural stability and high-quality materials, the canopy protects against precipitation and wind, improving storage and work organisation.

The modular system allows the area of the canopy to be easily adapted to suit your needs, and mounting on concrete blocks makes it possible to move or relocate without interfering with the site. It is the ideal solution for companies that value speed and economy of investment.


For more information or inquiries, please visit our contact or our customising page.
