Container shelters C4020QH 12×6 m

C4020QH
€2,621.16
VAT included Delivery within 3-4 days
Follow our tips for purchasing and installing this product:
phone +48 604 108 143
Monday - Friday 8.30 - 17.30

QH container shelters - quick assembly without welding!

With a surface area of 72 m², the C4020QH container shelter is a robust, mobile solution that is ideal for protecting the space between containers. This structure provides excellent protection against adverse weather conditions such as rain, snow or intense UV radiation. The C4020QH canopy provides a secure place to store goods, equipment or building materials and can also be used as a workspace.

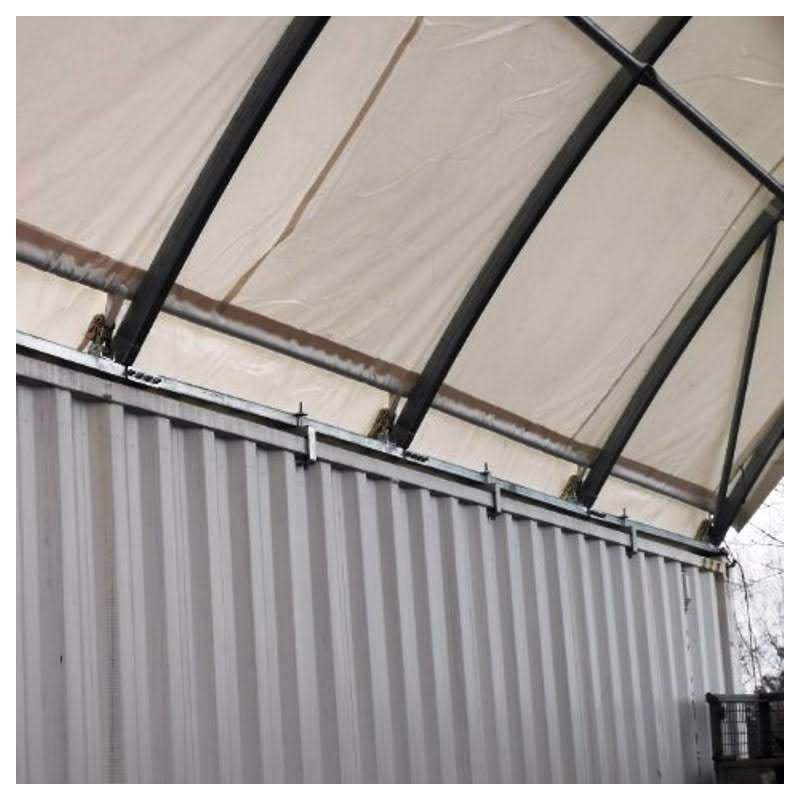

The container shelters in the QH series do not require welding. Thanks to the mounting system, which is based on a mounting bracket system, our canopy is even easier to install. Special brackets are screwed to the structural elements of the shipping containers, so you do not have to weld the canopy to the roof of the shipping container. In this way, we have significantly reduced the assembly time of the canopy and made dismantling even easier.

Colour

favorite
favorite_border

Watch the video for a short presentation of container shelters

Watch the video for a short presentation of container shelters

print Print this offer

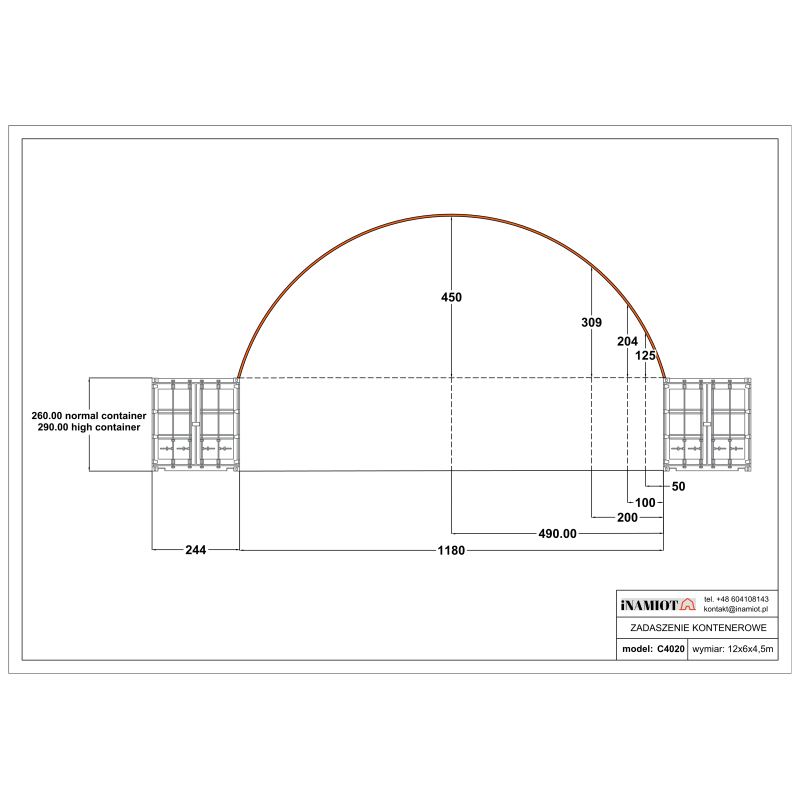

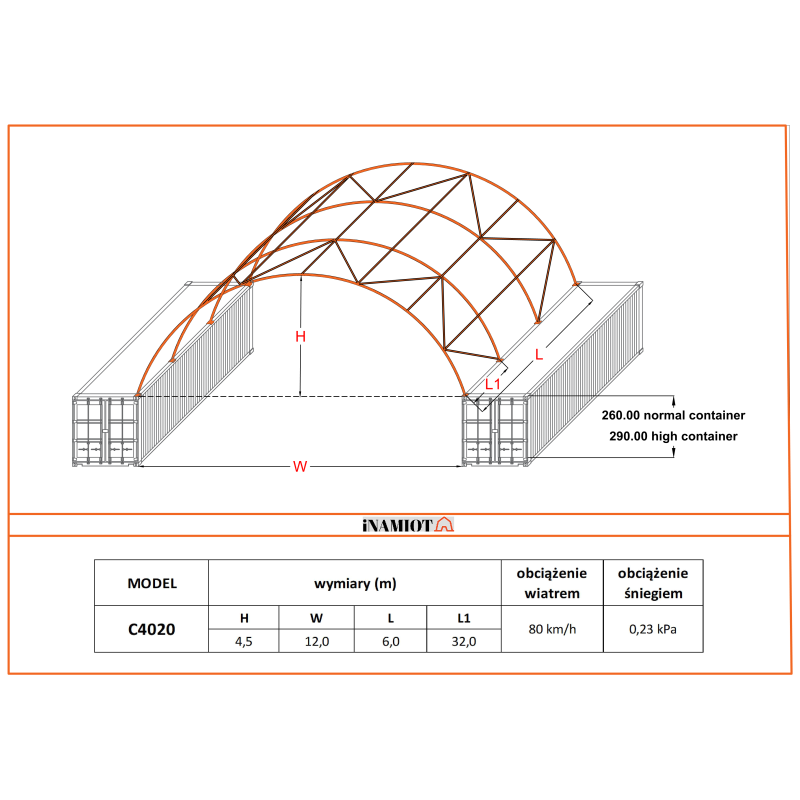

Data sheet Specification
Installation method Screwing
Width (m) 12
Length (m) 6
Door opening width (m) [HC container]. 4.00x3.20 [3.50] m
Height (m) 3.40
Curve interval (m) 2.00
Arc Φ (mm) 53.0x73. x1,80
Purlin Φ (mm) 48.0x1.5
Snow load (kPa) 0.28
Maximum wind speed (wind load) (km/h) 80

You might also like

Construction and materials of the 12 m wide container shelters


The C4020QH - 12x6 m container shelters feature a sturdy steel construction that guarantees stability and longevity. The frame is made of high-quality galvanised steel tubes with increased corrosion resistance, making it ideal for use in various weather conditions and all year round.

The canopy cover is made from a durable PVC material with high UV and water resistance, which effectively protects goods stored under the canopy from damage from the sun, moisture or snow. The material is easy to maintain and tear-resistant, making it a practical choice for many years of intensive use.

Functionality and use

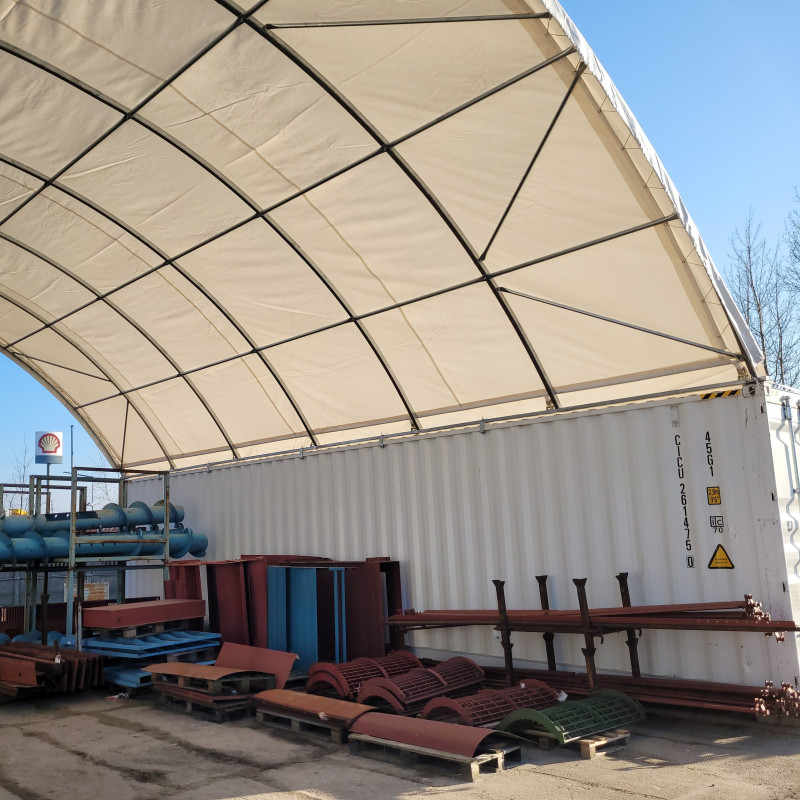

The **C4020QH** container shelters are designed for flexible use in areas where additional protective space is needed. It is ideal as a temporary or permanent shelter over a loading area, protecting goods and materials from the elements. It can also be used as workspace in industry, warehouses or construction sites. Construction companies often use container shelters as covered parking spaces for delivery vans, excavators or storage for heavy, construction equipment. The ease with which items that should not be exposed to rain can be stored makes the canopies between the roofs of shipping containers an increasingly popular product among construction and assembly companies.


The versatility of shipping container canopies makes them suitable for a variety of applications, such as protecting pallets of goods, securing construction equipment or even creating storage space for machinery and vehicles. In addition, thanks to its mobility and ease of assembly, the canopy can be quickly moved or dismantled as required.




For more information or inquiries, please visit our contact or our customising page.
