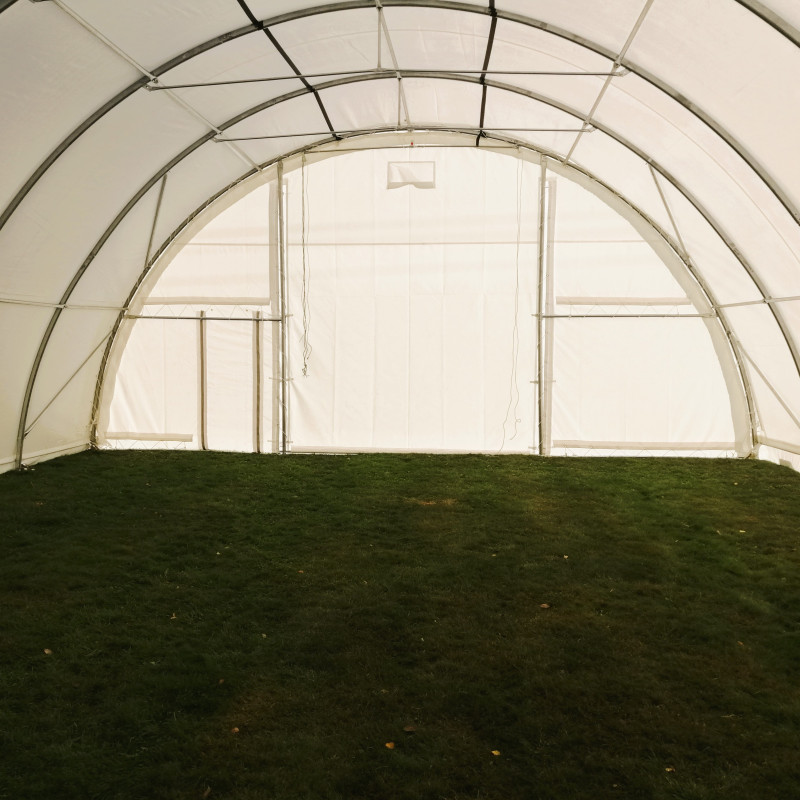

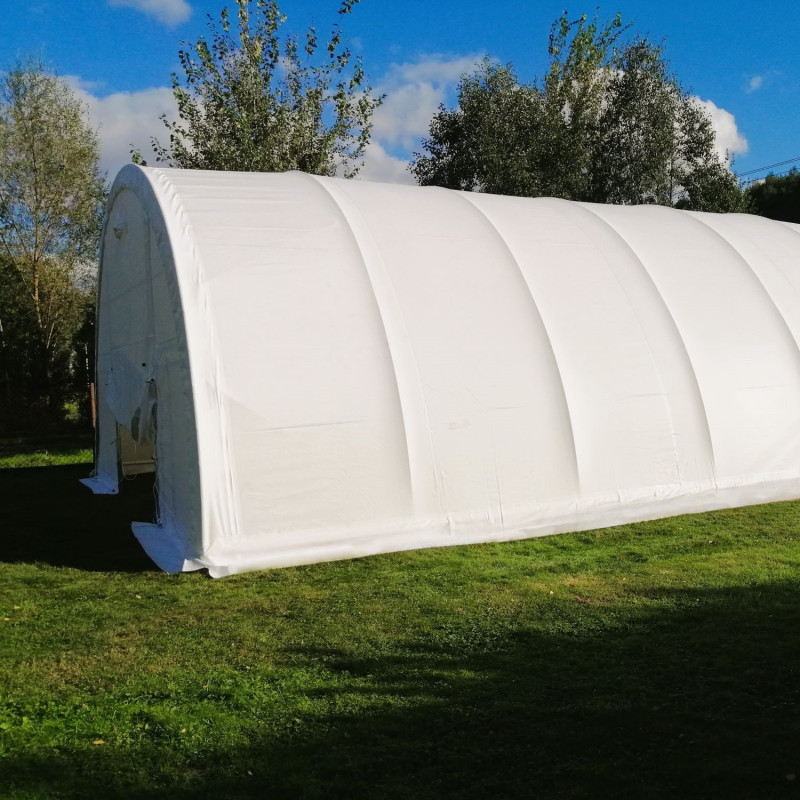

Arch hall 308515R 9.15×26 m

308515R
€7,867.27
VAT included Delivery within 3-4 days
Follow our tips for purchasing and installing this product:
phone +48 604 108 143
Monday - Friday 8.30 - 17.30

9m wide arch hall - the ideal solution for your farm

The 9m wide arch hall is an extremely practical and functional solution for farmers looking for additional storage space. Its construction, based on lightweight and strong steel profiles, ensures stability and resistance to adverse weather conditions. In this model, galvanised steel profiles with a rectangular cross-section of 56.0x86.0x2.00 mm were used, which increases the strength of the structural arches. The skeleton of the arch hall is reinforced in this model by diagonal steel bracing, struts under the ceiling and cable steel bracing. In this way you can be sure that your crops, hay, agricultural machinery or other valuables will be safe all year round.

Colour

favorite
favorite_border

print Print this offer

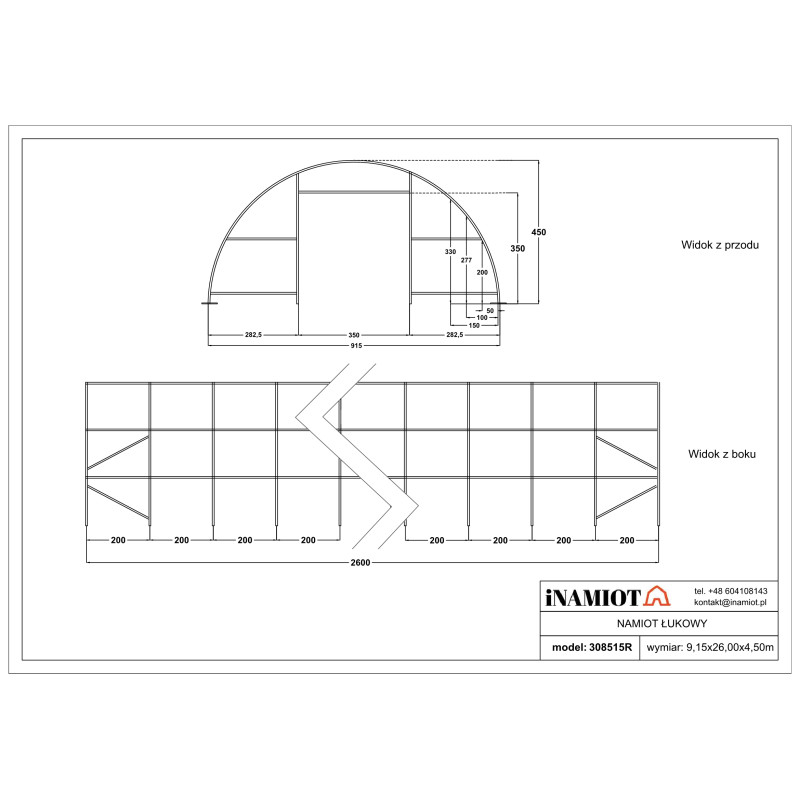

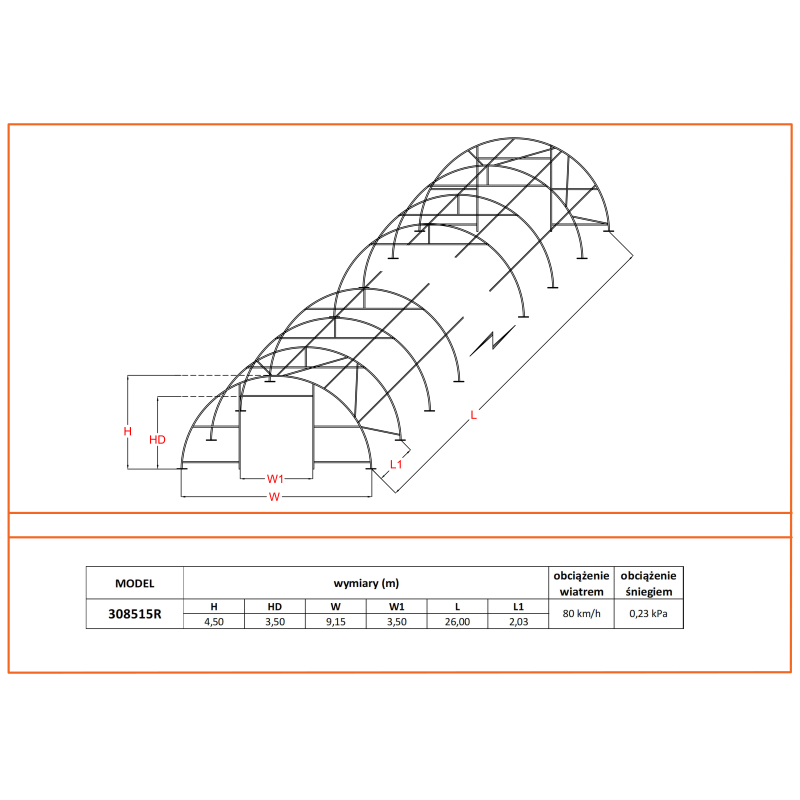

Data sheet Specification
Width (m) 9.15
Length (m) 26.0
Door opening width (m) 3.50x3.50
Height (m) 4.50
Curve interval (m) 2.00
Arc Φ (mm) 56.0x86.0x2.00
Purlin Φ (mm) 48.0x1.5
Snow load (kPa) 0.28
Maximum wind speed (wind load) (km/h) 80

You might also like

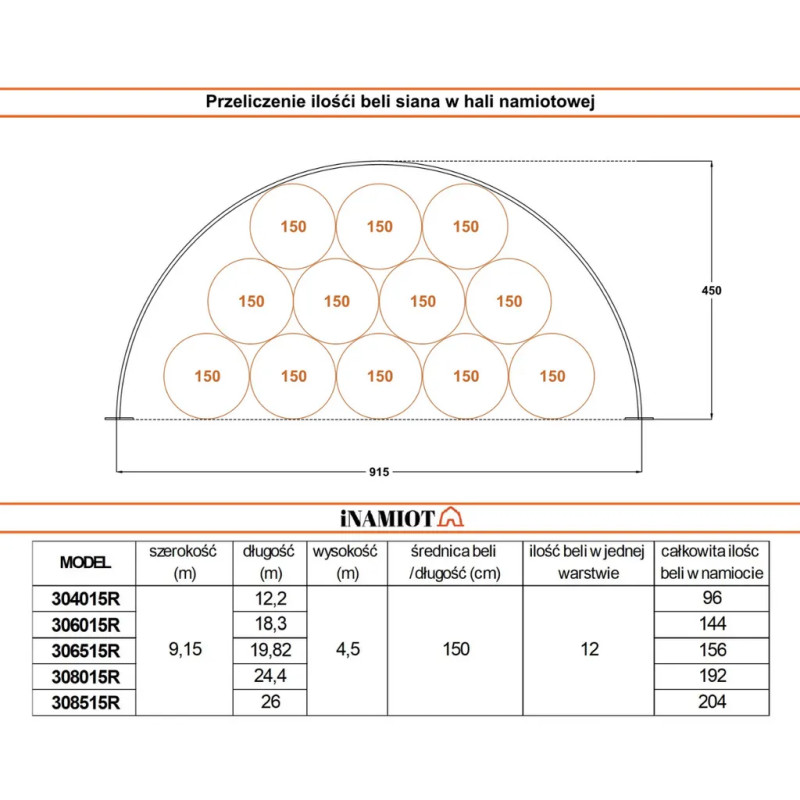

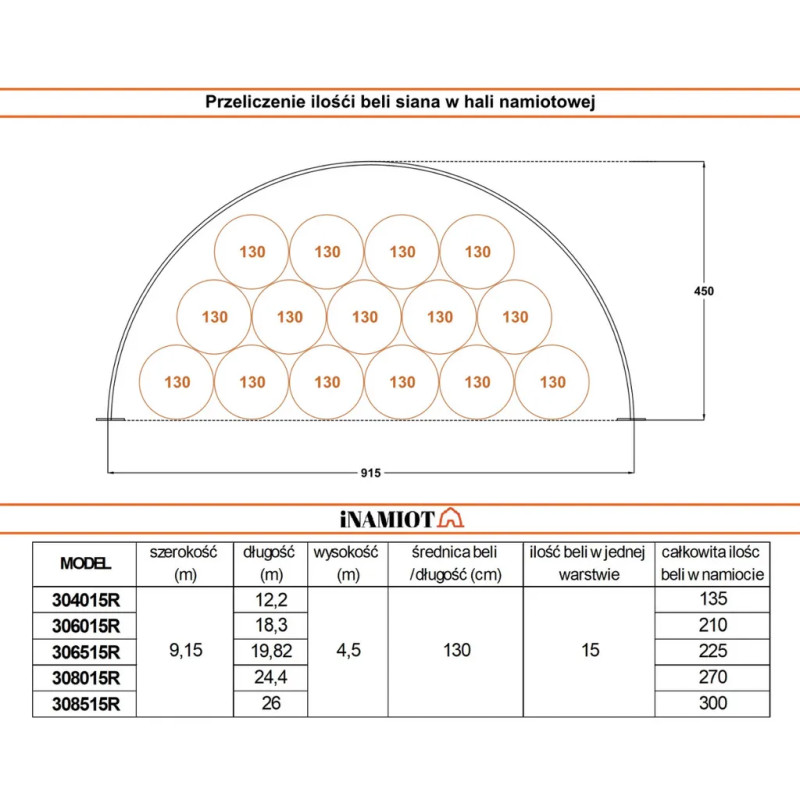

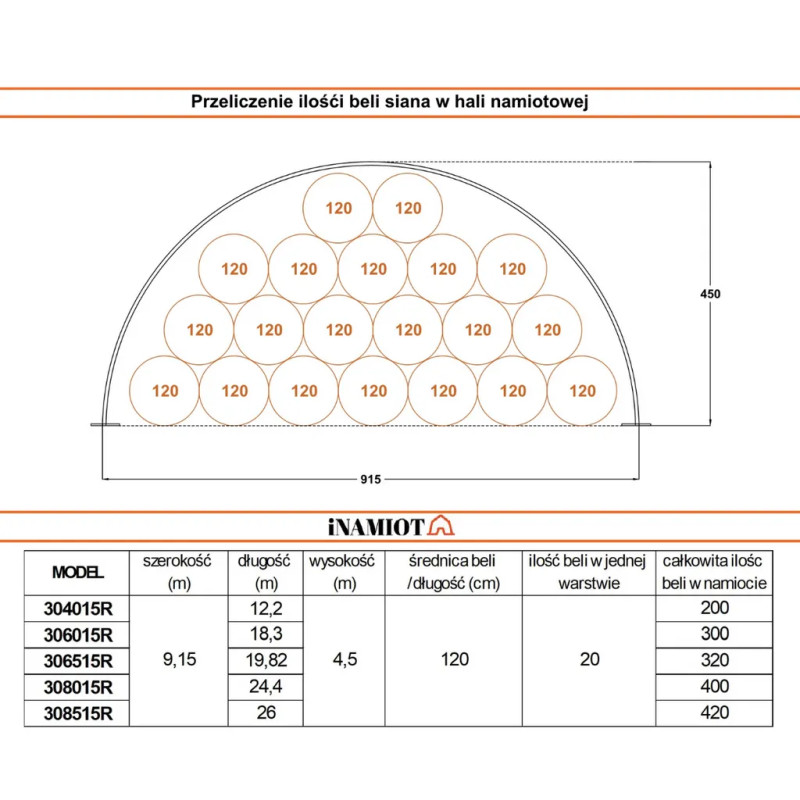

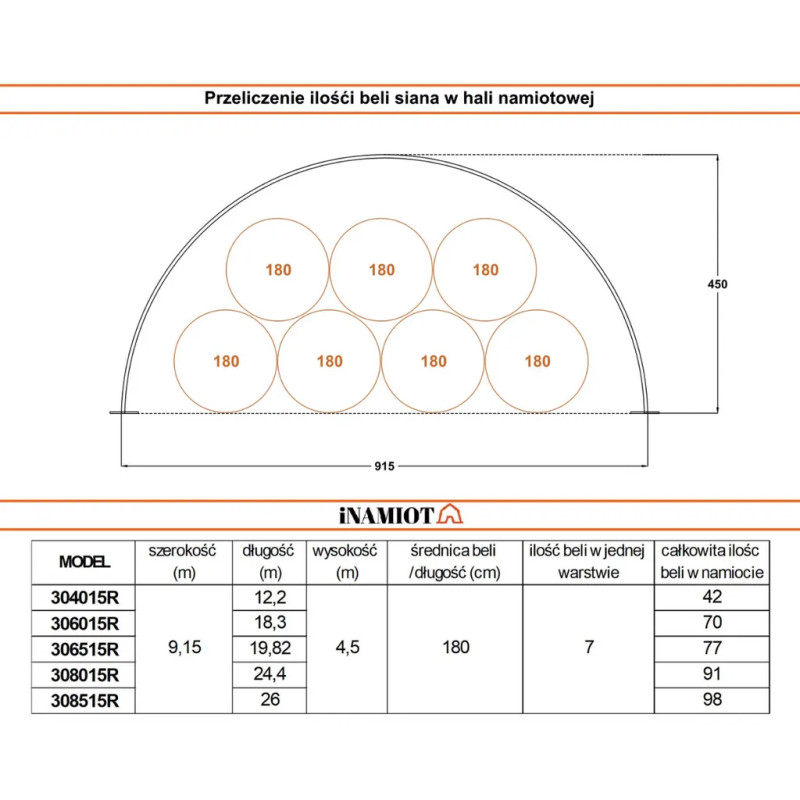

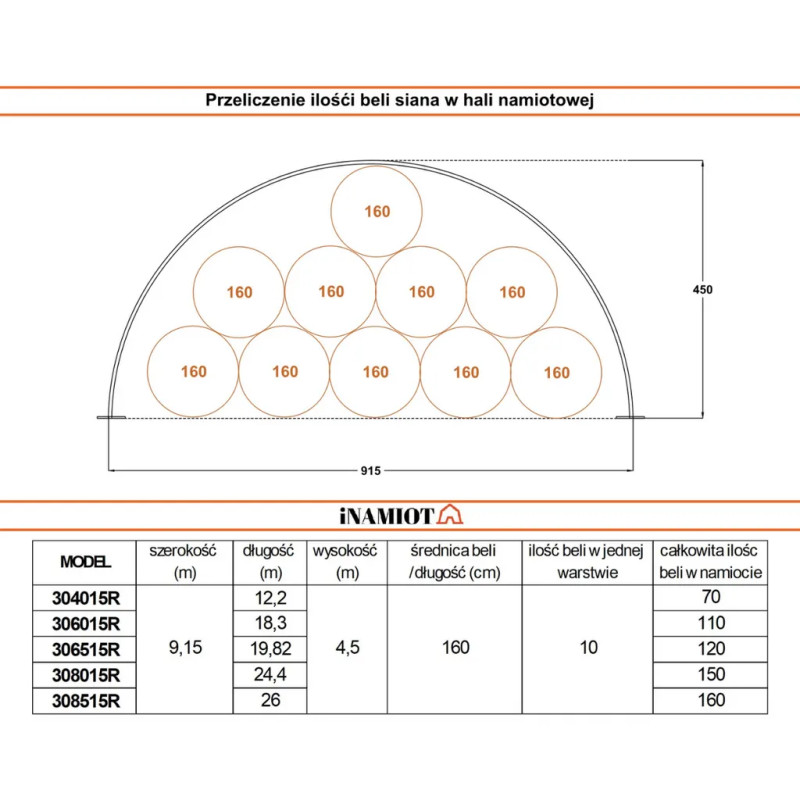

Arch halls as tents for hay bales.

Arch tents are very often chosen as storage for hay and straw bales. Thanks to the arched construction of the tent, it provides the optimum volume of space under the roof for storing hay bales. An additional advantage of our products in this series is that it comes with gable walls, which are not a load-bearing element of the construction but a weatherproofing element. As a result, the straw bales are kept well ventilated throughout the season.

Assembly of the arch hall.

The 9 m wide arched tent hall series is very easy to assemble. The kit that the customer receives contains all the necessary components for erecting the agricultural marquee himself. The components are well described and the included assembly instructions show step-by-step how to carry out the installation. The completed components have to be assembled and bolted together, and the tarpaulin stretched. It takes only 2-3 days for an inexperienced team to assemble a tent hall.

Arch halls can be mounted on the ground with ground pegs or on lego concrete blocks. Choosing concrete blocks raises the height of the hall and provides a stable retaining wall when storing heavy items.

Advantages of the agricultural marquee:

- Strong 900 g/m² PVC tarpaulin - durable, weatherproof, providing complete protection from rain, wind and sun.
- Flame-retardant tarpaulin class B2
- Entrance gates - each gable wall of the agricultural marquee has a lift gate.
- Tensioning of the hall tarpaulins - this is done by means of elastic ropes , tension pipes and conveyor belts.
- Rectangular steel profiles - the rectangular steel tube profiles are much stronger than round steel profiles.
- Galvanised construction - robust, corrosion-resistant, guaranteeing long-lasting use even in harsh outdoor conditions.
- Easy assembly of the arch hall - the enclosure can be easily assembled by yourself with the included assembly instructions. Each unit comes with detailed instructions, and we offer additional support on our YouTube channel, where you will find step-by-step videos showing the entire assembly process.
- Tele-assembly advice - our consultants assist you in real time via phone or Whatsapp with the camera. Mounting has never been so easy.
- Mounting to the ground - using long metal pegs driven into the ground, so the arch hall is firmly fixed to the hardened ground
- Additional roof bracing - in order to improve the static properties of the roof, we added roof bracing, which further increases its resistance to wind and snow.
- Versatility of applications - suitable for agriculture, construction, logistics, industry and outdoor events.

Why choose a 9m arch hall?

  • Wide range of applications: The 9m wide arch hall is ideal as a storage facility for hay, straw, grain or as a garage for agricultural machinery. It can also be used as a workshop, a wood drying room or as a temporary shelter for animals.
  • Quick and easy assembly: Thanks to its modular construction, the arch hall can be assembled quickly and easily, even with few tools. It does not require complicated construction work, which translates into significant savings in time and money.
  • High durability: The arch hall is constructed from high-quality steel, which guarantees its durability and resistance to external influences such as wind, snow or rain.
  • Long life: Thanks to the use of suitable materials and production technology, the arch hall can last for many years, requiring only minimal maintenance.
  • Aesthetic appearance: the arch hall with its modern design fits perfectly into the landscape of any farm, adding elegance and functionality.
  • Expandable: If storage needs increase, the arch hall can be easily extended by adding further modules.
  • Attractive value for money: The 9m arch hall is an investment that will quickly pay for itself, providing cost savings on storage and property protection.

For more information or inquiries, please visit our contact or our customising page.
