Arch hall GSR404021S 12.2×12.20 m

Safety standards and durability

The safety of the structure has been confirmed by a series of tests and static-strength calculations carried out in accordance with European standards. Wind and snow loads were included in the analyses, allowing the structure to be adapted to even the most demanding weather conditions. The agricultural arch hall meets the requirements of **PN-EN 1990**, which are the basis for the design of building structures, and the **PN-EN 1993-1** standards for the design of steel structures. Analysis has shown that the arch hall is able to withstand static loads resulting from its own weight as well as from snowfall and wind gusts of up to 83 km/h.

When you buy this hall model from us, you receive static and strength calculations in accordance with PN-EN 13782:2015-07

Arch hall with static calculation of the structure

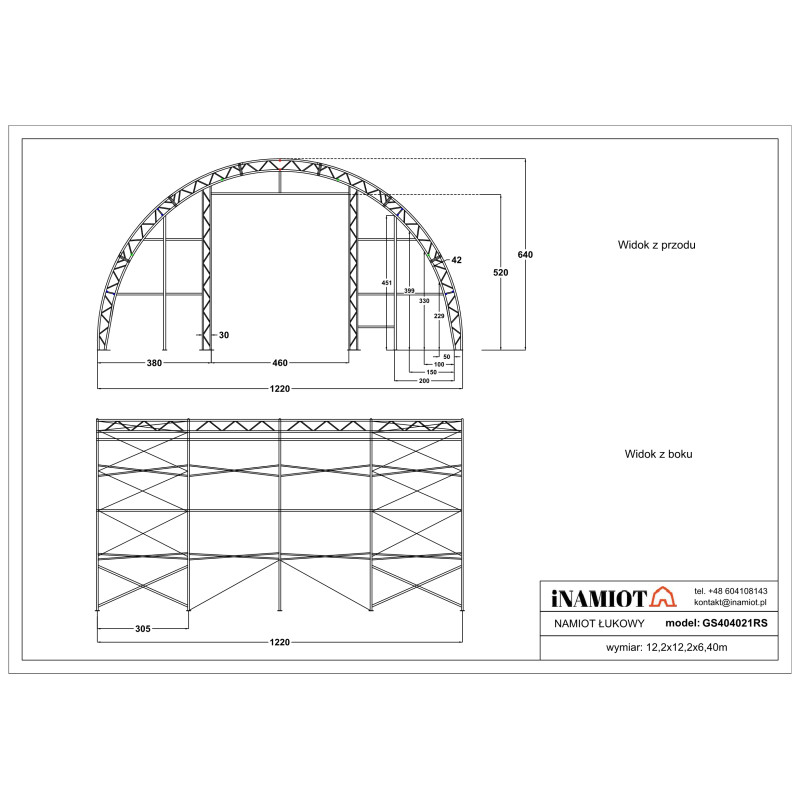

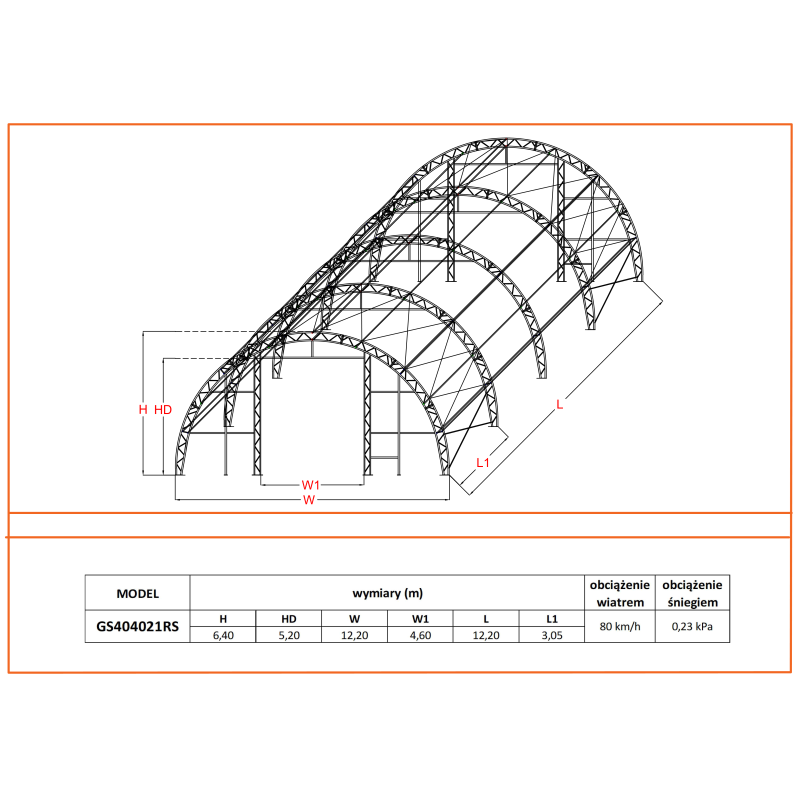

The hall is characterised by its spacious dimensions of 12.2 m in width, 12.2 m in length and 6.4 m in height, which provides great adaptability according to your needs. With this size, it is possible to store large agricultural machinery, vehicles, building materials, hay bales, straw bales, tools or agricultural crops. The GSR404021S arch hall is distinguished by its construction based on steel arch girders, which provide stability and resistance to weather loads such as strong wind or snowfall.

Arch hall construction.

The hall's structure was made from the highest quality S235 steel, which ensures the appropriate rigidity and strength of the structure. Additional bracing of the bottom chord of the truss was included in the design, which strengthens the entire structure and increases its resistance to external factors. The hall is supported on articulated connections to the stable ground, using four anchors, which guarantees the stability of the assembly even in more difficult ground conditions.


The hall's construction is adapted to Polish climatic conditions and meets the requirements of the **PN-EN 13782:2015-07** standard, which relates to the safety of temporary structures such as tents, and the **PN-EN 1991-1-3:2008** (for snow loads) and **PN-EN 1991-1-4:2008** (for wind loads) standards.

Ease of erection and dismantling

One of the greatest strengths of the GSR404021S arch hall is its modular design, which enables quick and easy assembly and disassembly. The use of articulated girder connections and a system of anchoring to the ground with anchors allows the hall to be installed efficiently, even in adverse terrain conditions. Prior to assembly, it is important to ensure that the ground is sufficiently stable and level to guarantee long-term use without the risk of damage to the structure.

The hall assembly instructions are detailed and include all the necessary information and technical drawings, making the entire installation process much easier. The kit includes all necessary structural components, as well as bolts, nuts and washers. The assembly process, with appropriate safety precautions, can be carried out by a small group of people. Thanks to its modular design, the hall can also be adapted to specific needs, such as adding additional segments or fitting a mechanical door.

Applications of the GSR404021S arch hall

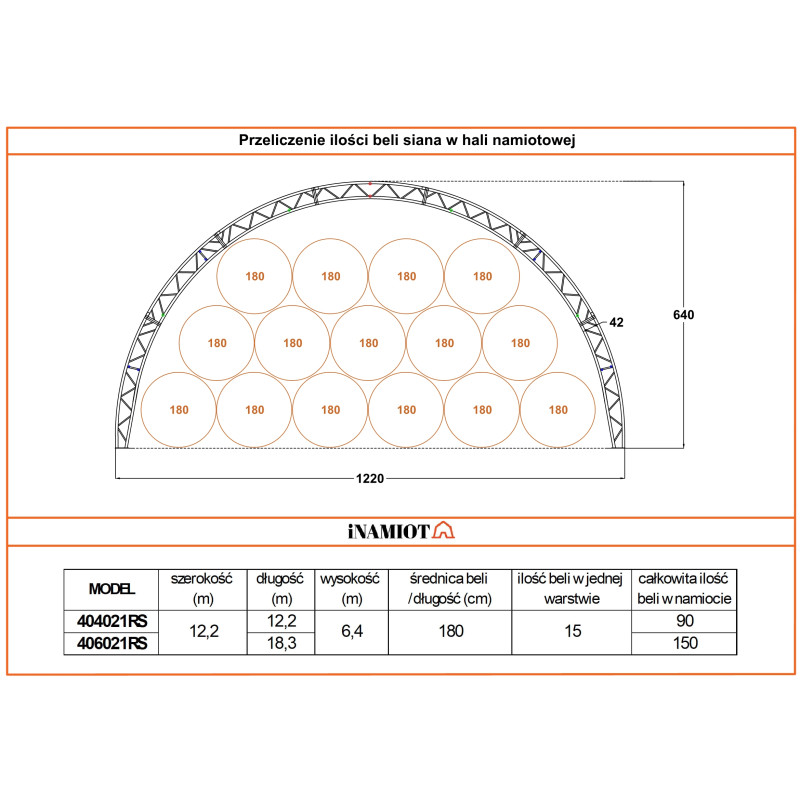

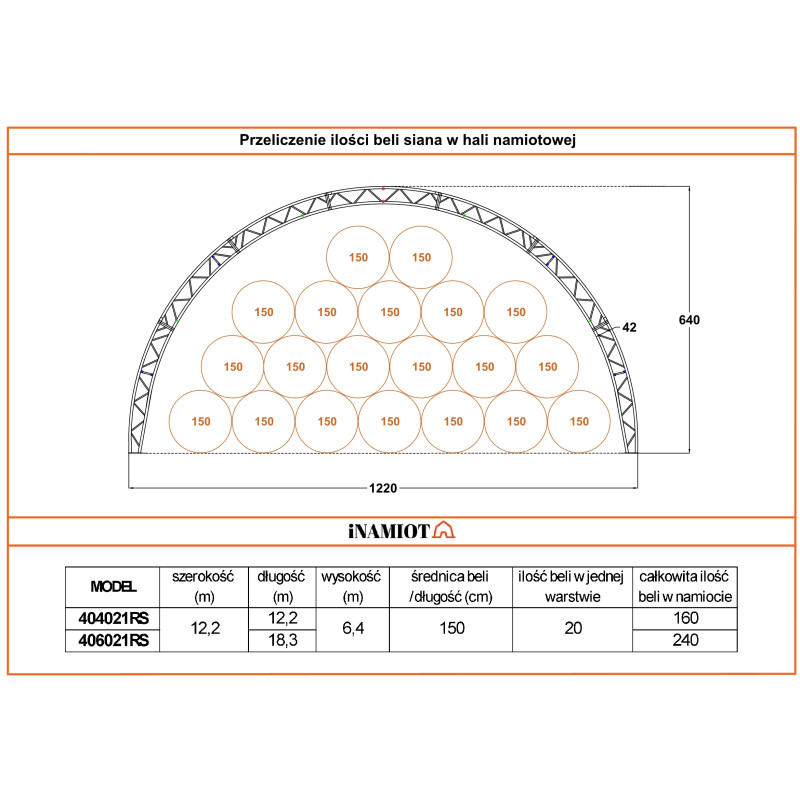

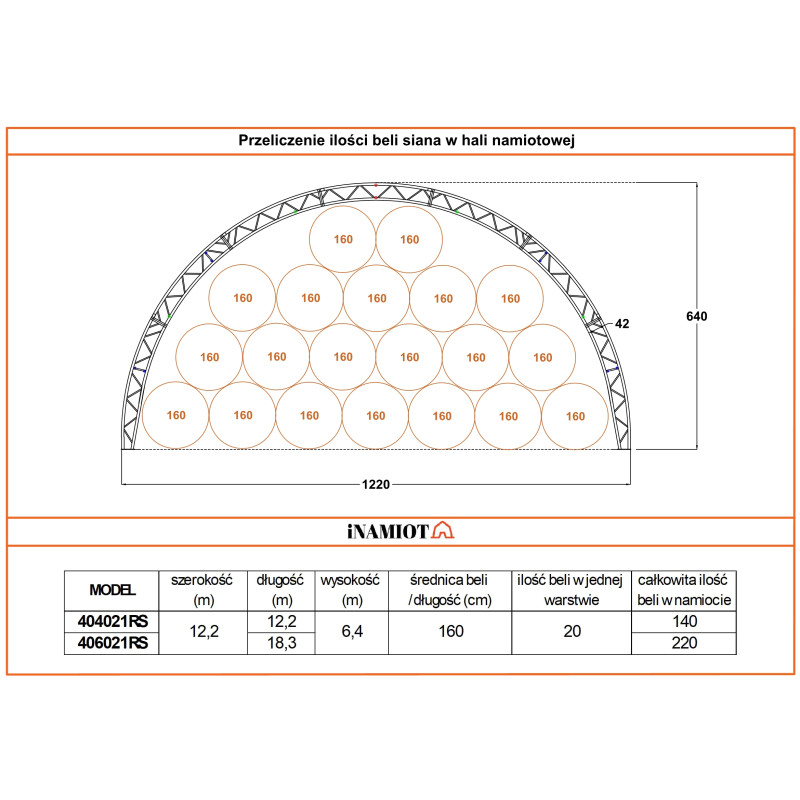

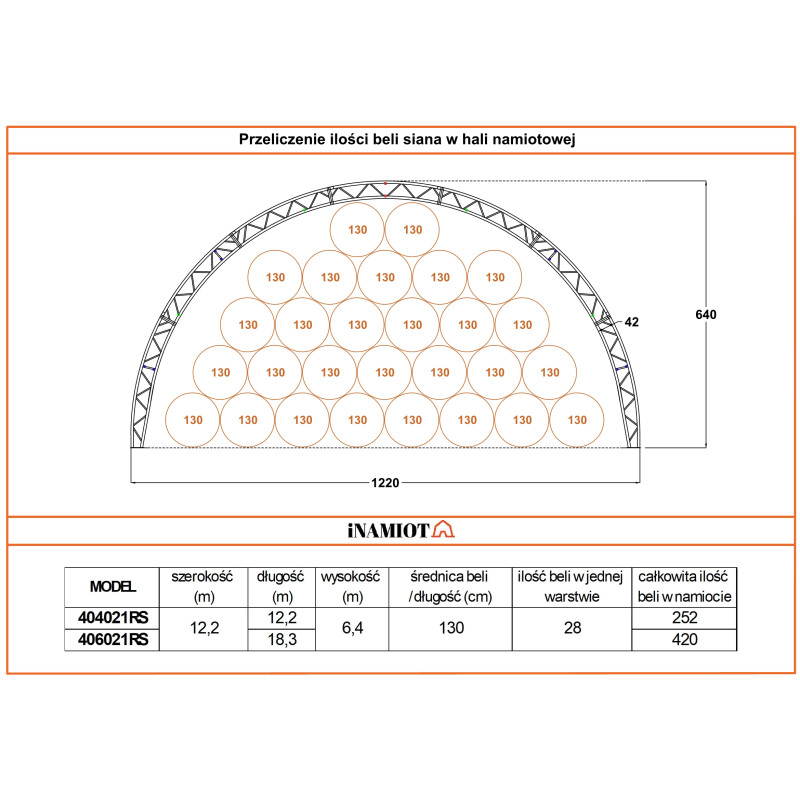

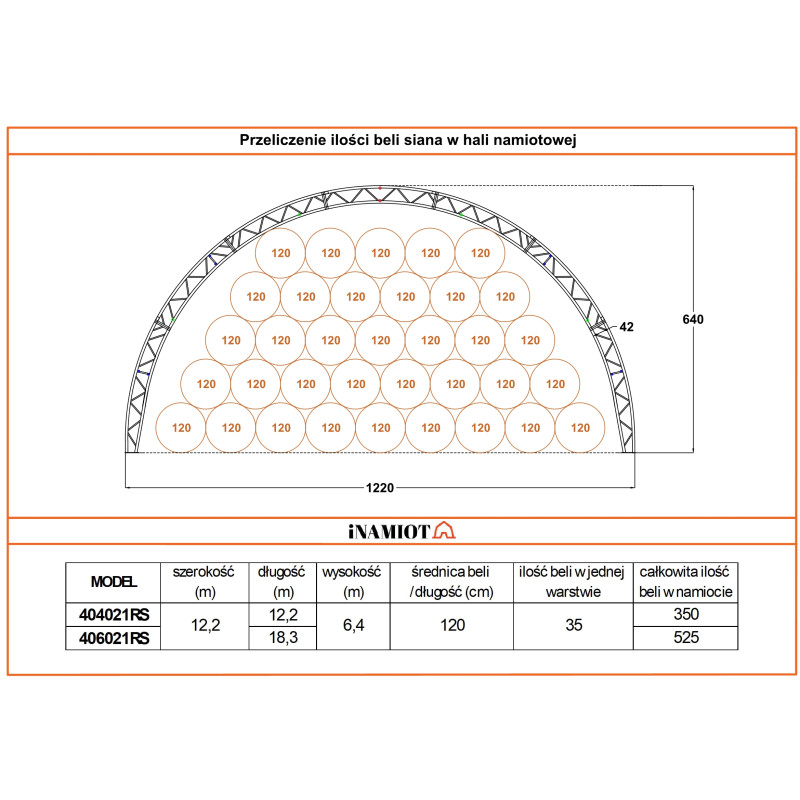

The GSR404021S arch hall is versatile in its use. However, it is most often purchased by farms, this is due to its versatility of use and its high capacity when it comes to the possibilities of storing hay bales. In addition, it can be used in agriculture to store crops, machinery or agricultural equipment or to keep livestock as a barn. Its large dimensions and adaptability also make it suitable for use as a warehouse in industry, logistics or even for outdoor events. Thanks to its ability to be quickly assembled and dismantled, the hall can be used as a temporary storage facility on construction sites or where temporary infrastructure is required.
