Tent canopy for cattle 10x12 m
ON3340
+48 604 108 143Monday - Friday 8.30 - 17.30

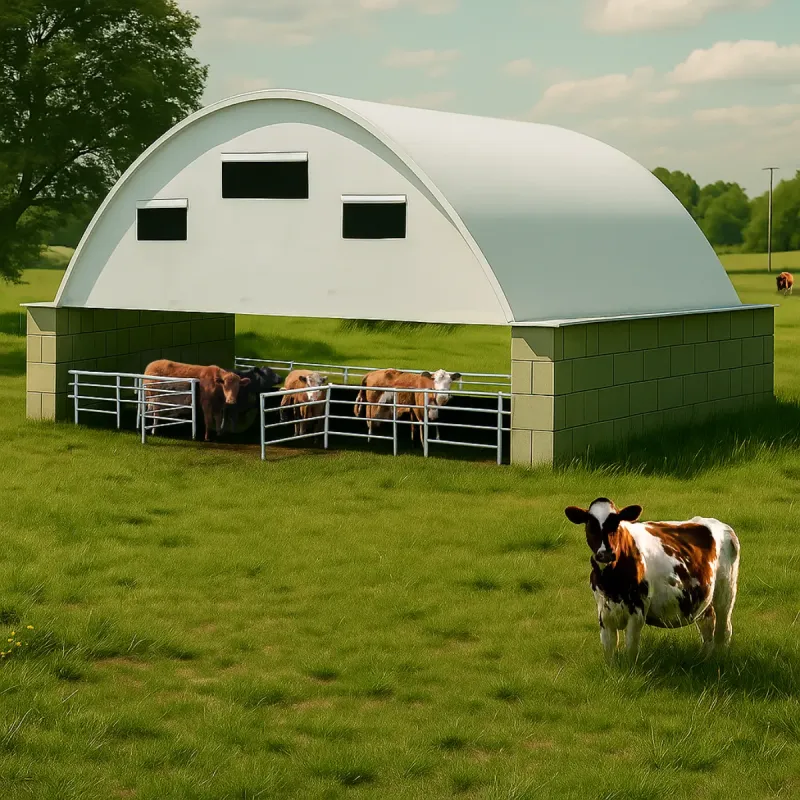

Marquee canopy for beef cattle 10 × 12 m
Compact, durable and functional - the 10 × 12 m marquee canopy is the ideal solution for farms that need a secure space for fattening cattle but do not want to invest in costly brick buildings. This model combines quick assembly with high quality workmanship and flexibility of use all year round.
| Data sheet | Specification |
|---|---|
| Thickness of PVC tarpaulin | 900 g/m2 |
| Width (m) | 10 |
| Length (m) | 12.0 |
| Height (m) | 3.60 |
| Arc Φ (mm) | 76.0x 1.8 |
| Purlin Φ (mm) | 60.0x1.50 |
| Snow load (kPa) | 0.28 |
| Maximum wind speed (wind load) (km/h) | 80 |
Thoughtful construction with ventilation
The hall is equipped with solid gable walls with ventilation openings, which ensure constant air flow and eliminate the problem of humidity and dirt inside the facility. This solution is available only in our model and is particularly appreciated by breeders who care about the comfort and health of their animals.

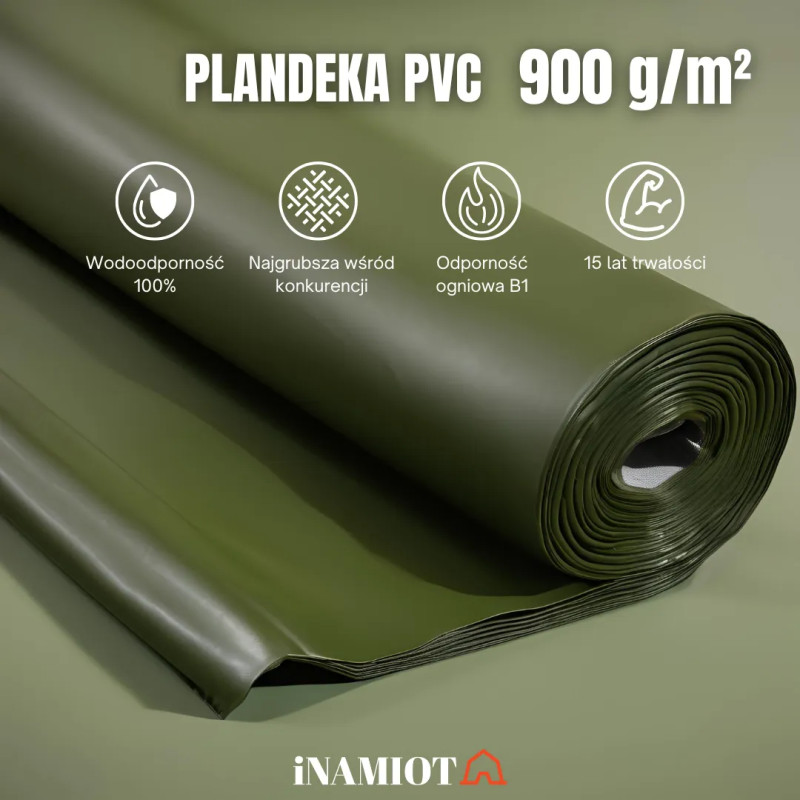

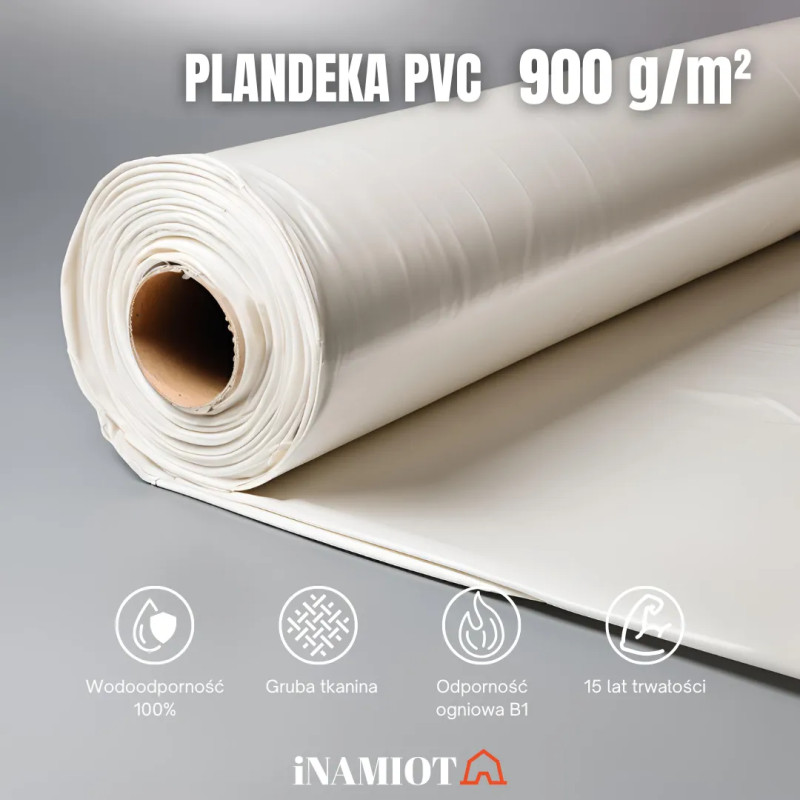

The hot-dip galvanised steel frame guarantees resistance to corrosion and harsh weather conditions. The cover made of 900 g/m² PVC tarpaulin provides excellent protection against precipitation, sun and wind, while allowing natural light into the interior - reducing lighting costs and improving animal welfare.
Useable area and functionality
For a 120 m² barn, the number of cows that can be housed depends on:
1. the weight of the animals (i.e. their age and stage of fattening)
2. the housing system (intensive vs. semi-intensive vs. grazing)
3. whether you want to meet only the legal minimum or provide more comfort
Minimum areas according to legislation (for fattening):
| Body weight of the fattening animal | Minimum area | Number of heads per 120 m² |
| up to 300 kg | 1.6 m² / pc. | approx. 75 units |
| 301-450 kg | 2,0 m² / pc. | approx. 60 units |
| over 450 kg | 2.5 m² / piece. | approx. 48 units |
Practical recommendations (for welfare):
| Breeding type | Recommended area | Number of heads per 120 m² |
| Intensive (high stocking density) | 2.5-3.0 m² / head | 40-48 animals |
| Semi-intensive (comfortable) | 3,5-4,0 m² / pcs. | 30-34 units |
| Comfort + paddock | 4.5-5.0 m² / unit |
24-27 units |

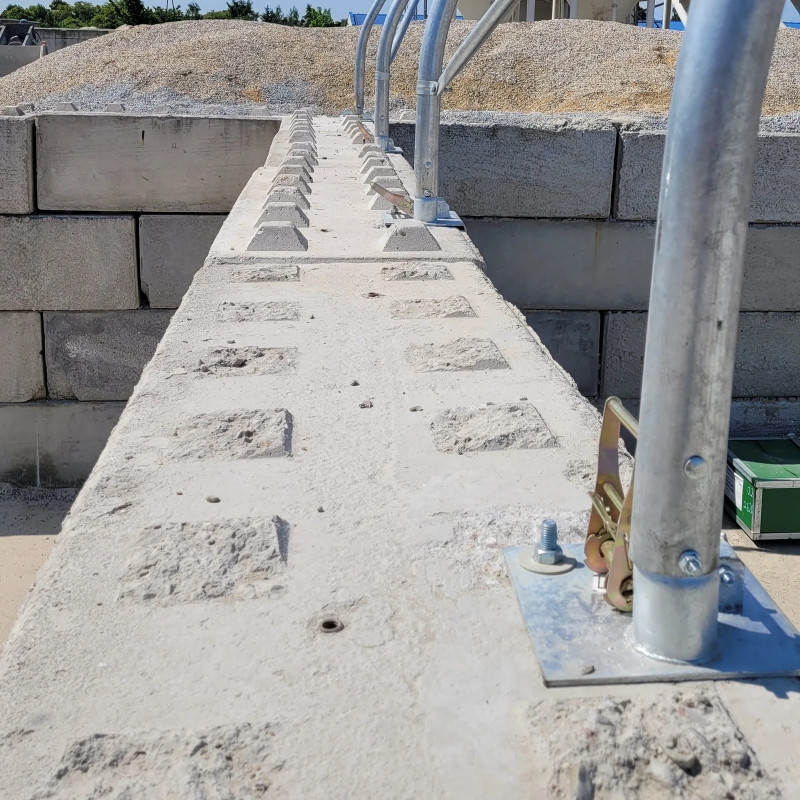

The adaptability of the walls (e.g. from LEGO blocks) means that the construction can be perfectly adapted to the housing system, number of animals and existing infrastructure.
Assembly that you can do yourself
The set is suitable for self-assembly - it includes a complete package of marked components and step-by-step instructions. Our instructional videos also provide support. For those wishing to do so, we offer contacts to proven installation teams who carry out the installation professionally and efficiently.
Multifunctional all year round
Although the 10 × 12 m storage tent was designed for beef cattle breeding, its versatile construction and high resistance to outdoor conditions make it a multifunctional farm facility that is available all year round. On many farms, it plays additional or seasonal roles - adapted to current needs.
In practice, the hall works well as:
Storage of roughage or fertilisers - the 120 m² space allows for the safe storage of haylage, maize, beet pulp as well as bagged or bulk fertilisers. An airtight tarpaulin protects the contents from moisture, and the lack of foundations allows quick unloading and easy access for equipment.
Garage for tractors and agricultural equipment - the height of the structure and the wide ground clearance mean that even large machines can be accommodated inside: tractors, sprayers, balers, trailers or loaders. A simple and economical way to secure your machinery in the off-season.
Straw or hay bale storage - the design without internal supports allows round and rectangular bales to be stacked on top of each other, with adequate ventilation and protection from the rain.
In addition, the hall can be used as a trans-shipment warehouse during harvesting or loading seasons, and as a temporary shelter for other animals or agricultural infrastructure if required.
Thanks to its simple form, modular construction and high durability, the facility can easily be adapted to a wide variety of tasks - without the need for costly extensions or the involvement of designers.
For more information or inquiries, please visit our contact or our customising page.
