Arch hall 324016P 9.76×12 m

324016P
€8,334.83
VAT included Delivery within 3-4 days
Follow our tips for purchasing and installing this product:
phone +48 604 108 143
Monday - Friday 8.30 - 17.30

Series 32 arch hall.

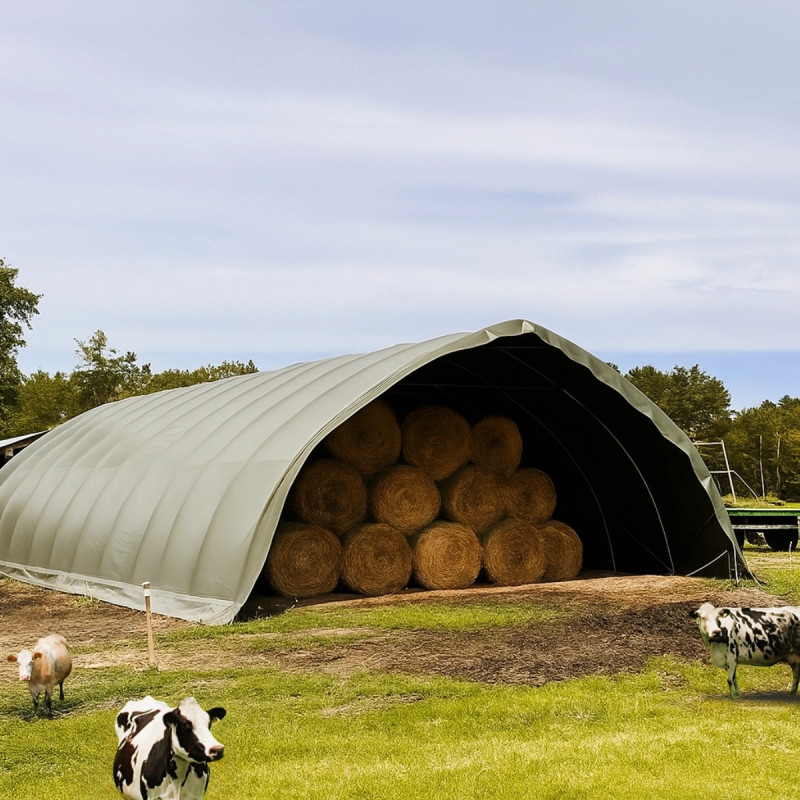

Arched tent halls with a width of 9.76 and various lengths (12m, 18m, 20m, 24m, 26m) are the most common choice of farmers for storing hay bales. With a peak height of 4.88m, it is a unique solution that provides large, functional storage space. Its sturdy steel construction with structural arches spaced at 2m intervals and high-quality PVC sheathing make it an ideal choice for use in the agricultural sector. The hall is ideal for storing fertiliser, hay bales, straw bales, crops, parking of machinery, vehicles, tools. Thanks to its size, it can comfortably accommodate a combine harvester with heder.

Strong 900 g/sqm canvas cover

Our tent halls are equipped with the thickest PVC tarpaulin on the market with a thickness of 900 g/sqm in order to extend the life of our products and provide maximum protection against wind, water, UV rays and snow. The thick PVC tarpaulin also means less chance of mechanical damage such as abrasion.

Colour

favorite
favorite_border

print Print this offer
Data sheet Specification
Width (m) 9.76
Length (m) 12,20
Door opening width (m) 3.66x3.66
Height (m) 4.88
Curve interval (m) 2.00
Arc Φ (mm) 60.0x1.80
Purlin Φ (mm) 40x1.50
Snow load (kPa) 0.28
Maximum wind speed (wind load) (km/h) 80

You might also like

The unique roof construction of the arched tent hall

Thanks to the spike-shaped arch in the construction of the agricultural marquee, we have gained side walls that rise very quickly and thus increase the ergonomic use of space. After just 50 cm into the interior of the agricultural marquee we obtain a height under the roof of 180 cm, and after moving 100 cm into the interior of the agricultural marquee we obtain a height of 250 cm. This allows agricultural machinery to be parked next to the wall and hay bales to be stacked high. Take a look at the pictures in the gallery.

The roof of the tent hall is reinforced with additional horizontal steel bracing that stiffens the structure.

Key parameters of the tent for hay bales:

- Hall dimensions 9.76m wide, 12m, 18m, 20m, 24m, 26m long and 4.88m high, providing between 120 and 250 m² of usable space.
- Galvanised steel structure: 76 mm diameter galvanised tubes for robustness and strength, resistant to corrosion and external influences.
- Sheathing: made of 900 g/m² PVC, providing complete protection against rain, snow, wind and UV radiation.
- Load resistance with a maximum snow load of 0.28 kPa and a wind load of up to 80 km/h, making the hall stable even in difficult weather conditions.
- The front and rear gates measure 3.5 x 3.5 m, allowing convenient access for larger vehicles and machinery
- The removable gable wall allows the entire width of the arch hall to be used, and the gable wall can be fitted very quickly if required.

Simple and quick assembly of the arch hall

The arch hall has been designed for quick and easy assembly. All components are appropriately labelled, enabling the structure to be assembled efficiently and without problems. Thanks to the clever assembly design, no specialist tools are required and the process can be carried out with standard equipment such as a ladder, hammer or spanners.

An important consideration is the preparation of the site prior to assembly. The arch hall for hay bales should be set up on stable ground, preferably on a paved surface, to ensure its long-term stability. The supplied anchors allow the structure to be firmly fixed, and the flexible transport straps help to evenly tension the roof tarpaulin, which guarantees its durability and resistance to weather conditions.

Why choose the arch hall series 32

With its robust construction, high-quality materials and ease of assembly, the 9.76 m wide arch hall is the perfect choice for anyone looking for a reliable, spacious and durable storage solution. Its versatility and weather resistance make it suitable for use in a variety of industries, and its fast delivery and easy assembly will put additional storage space into operation in no time.

For more information or inquiries, please visit our contact or our customising page.
