Arch hall 6×9 m 203012P

203012P
€2,476.62
VAT included Delivery within 3-4 days
Follow our tips for purchasing and installing this product:
phone +48 604 108 143
Monday - Friday 8.30 - 17.30

Compact arch halls.

With a width and length of 6 m, arch halls are an extremely practical, versatile and robust solution for agriculture, industry and all types of storage activities. Thanks to their characteristic curved construction, they are extremely resistant to harsh weather conditions, ensuring reliability in all circumstances.

Our arched tent halls are made of durable materials: thick 900g/mkw PVC tarpaulin and galvanised steel profiles. They are an excellent alternative to traditional masonry buildings, offering mobility and flexibility in use. The lightweight but robust construction makes arch halls an extremely cost-effective solution. More and more farmers are opting for this product, appreciating its functionality.

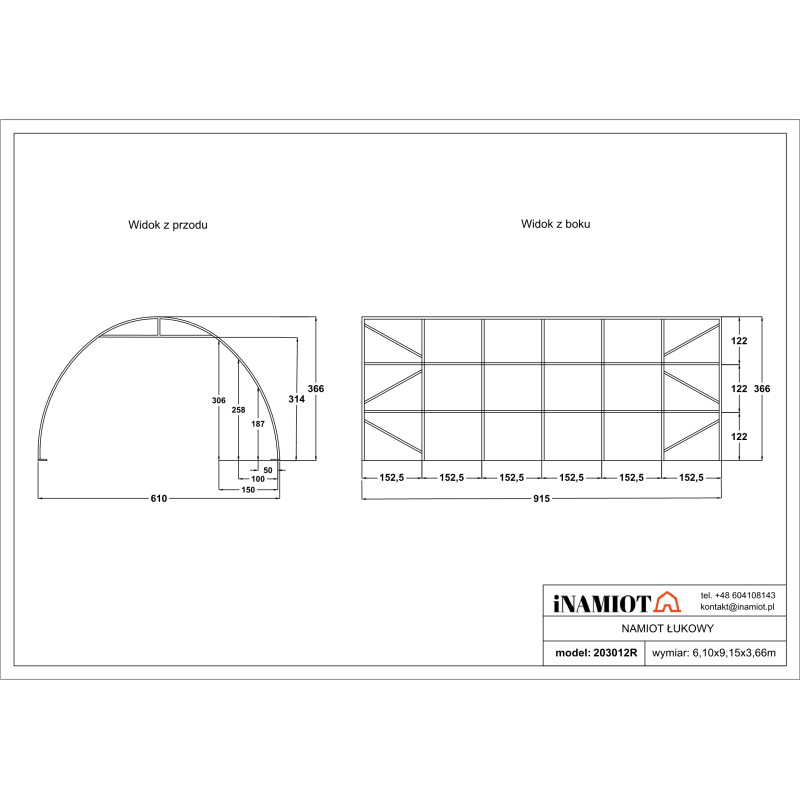

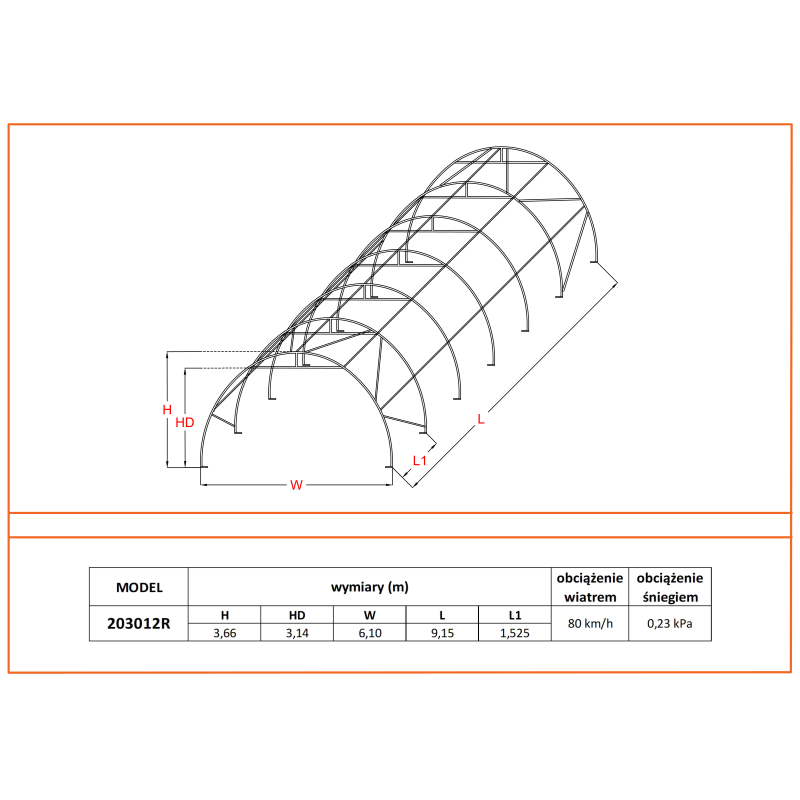

Data sheet Specification
Width (m) 6.10
Length (m) 9.15
Door opening width (m) 4.30x3.20
Height (m) 3.60
Curve interval (m) 1.50
Arc Φ (mm) 70.0 x 42.0 x 1.50
Purlin Φ (mm) 40.0 x 1.20
Snow load (kPa) 0.28
Maximum wind speed (wind load) (km/h) 80

Arch halls are always in stock.

Life shows that it is often necessary to react quickly to changing conditions. Therefore, in order to meet the needs of our customers, we process orders immediately. We always have several arch halls in stock, which enables us to dispatch them quickly. In Poland we deliver within 2 days and in Europe within 2-4 days.

The basic offer includes tarpaulins in white and green. We also offer other colours on request.

Strong construction is an investment for years

The galvanised steel tubes from which the skeleton of the arched tent hall is made are corrosion-resistant, guaranteeing durability for many years. The entire structure is covered with the thickest PVC tarpaulin on the market, 900 g/sqm, which provides excellent protection against the weather. The tarpaulin is waterproof and UV-resistant, which means that goods, equipment, hay bales or machinery stored inside the marquee warehouse are fully protected from rain, wind, snow and the harmful effects of the sun.

Wide gates located on the gable walls ensure adequate ventilation, which is particularly important when storing hay or straw.

Main features of the 6 m wide arch hall

The 6 m wide arch hall is available in a number of lengths: 6, 9, 12, 15, 18, 20 and 24 m. Thanks to its modular construction, it can be extended at will to suit your needs.

- Design - the curved shape of the roof drains rainwater and snow perfectly, minimising the load on the structure.
- Tarpaulin colour - the basic colours of the tarpaulin are white and green. White lets the sunlight through, so no additional lighting is needed during the day. The green tarpaulin of the arch hall blends in with the rural surroundings.
- Quick assembly and disassembly - Arch halls are known for their quick assembly. The assembly of a 6m wide arch hall can be carried out in three people in one day, without the need for specialised tools.
- Mobility - Unlike traditional buildings, arch halls can be easily moved to another location. The mobility of this type of building is extremely important in the agricultural or industrial sector, where needs may change seasonally or according to location.
- Flexibility: At the end of its useful life, the hall can be dismantled, packed into a box and sold, providing additional space and resource management opportunities.

The use of a 6 m wide arch hall with different lengths

Over many years of selling arch halls and storage tents, products with an arched roof shape are most often chosen by:

- Agriculture - Arch halls are ideal for storing bales of hay, straw, fodder, grain, fertiliser or agricultural machinery. Thanks to their design, they provide safe storage of crops, protecting them from moisture and harsh weather conditions.

- Warehousing - In the warehousing business, arch halls serve as additional space for goods, tools, equipment and raw materials. They are particularly valued in industries such as coal, timber, aggregate and waste sorting depots.






For more information or inquiries, please visit our contact or our customising page.
