Arch hall 9 x 10 m 303315R
303315RMonday - Friday 8.30 - 17.30

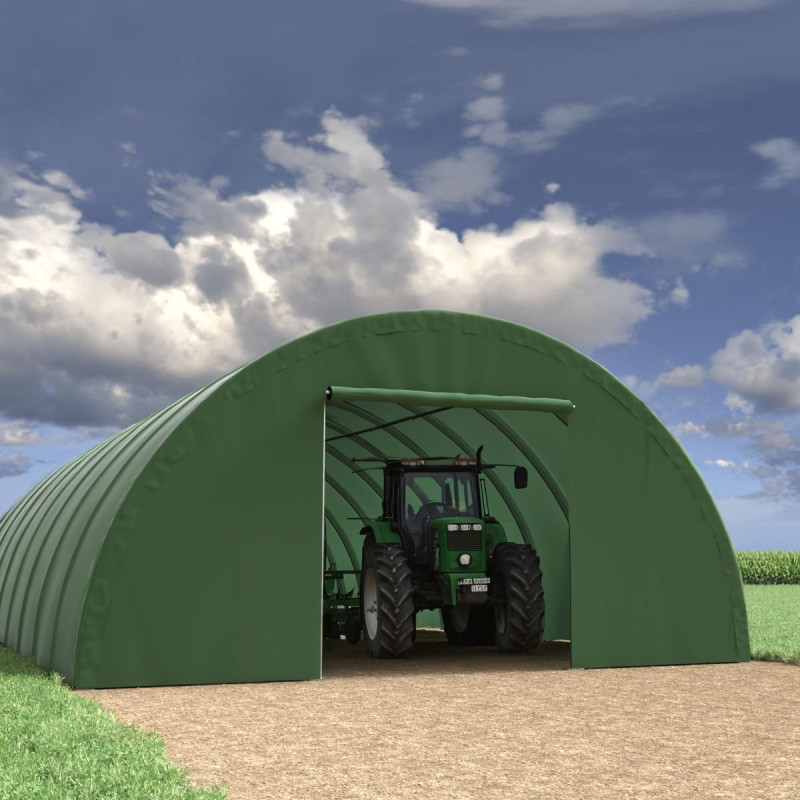

Arch hall 303315R 9 × 10 m - practical storage space for demanding farms
The 9 × 10 metre arch hall is a compact and functional solution for farmers who need reliable, sturdy and easy-to-assemble storage space. The structure, based on robust steel profiles, is designed to provide maximum durability, stability and to withstand intensive farm use throughout the year.

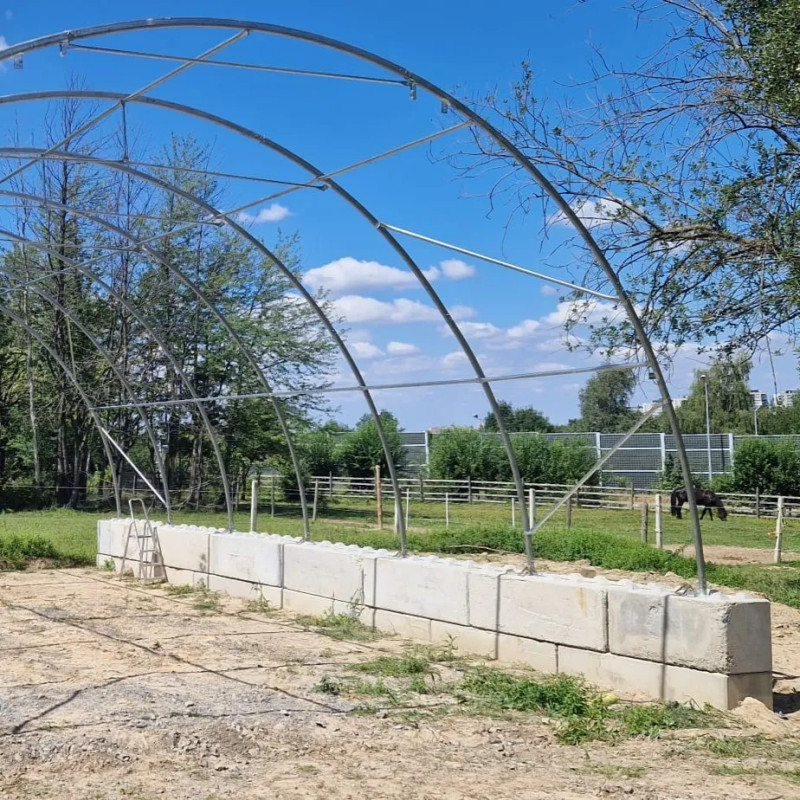

The 303315R uses galvanised steel profiles to ensure that the entire hall maintains a high level of weather and corrosion resistance. The structure has been further stiffened by: steel diagonal bracing, struts mounted under the ceiling and cable bracing to stabilise the arches. This combination of elements ensures that the hall copes well with wind and snow loads, maintaining its geometry and rigidity even during long-term use. This is an extremely practical and functional solution for farmers looking for additional storage space.
| Data sheet | Specification |
|---|---|
| Tearing strength of PVC tarpaulins EN ISO 13934-1 | 3600N (360 Kg) |
| UV protection: 50+ according to EN 13758-1:2007 | YES |
| Thickness of PVC tarpaulin | 900 g/m2 |
| Width (m) | 9.15 |
| Length (m) | 10.0 |
| Door opening width (m) | 3.50x3.50 |
| Height (m) | 4.50 |
| Curve interval (m) | 2.00 |
| Arc Φ (mm) | 56.0x86.0x2.00 |
| Purlin Φ (mm) | 48.0x1.5 |
| Snow load (kPa) | 0.28 |
| Maximum wind speed (wind load) (km/h) | 80 |
| Number of entrance gates | 2 |
Specific References
- EAN13
- 5901783470026
You might also like
Storage tent 10x12.2 m GS334017
Arch hall 6×15 m 205012P
Arch hall 324016P 9.76×12 m

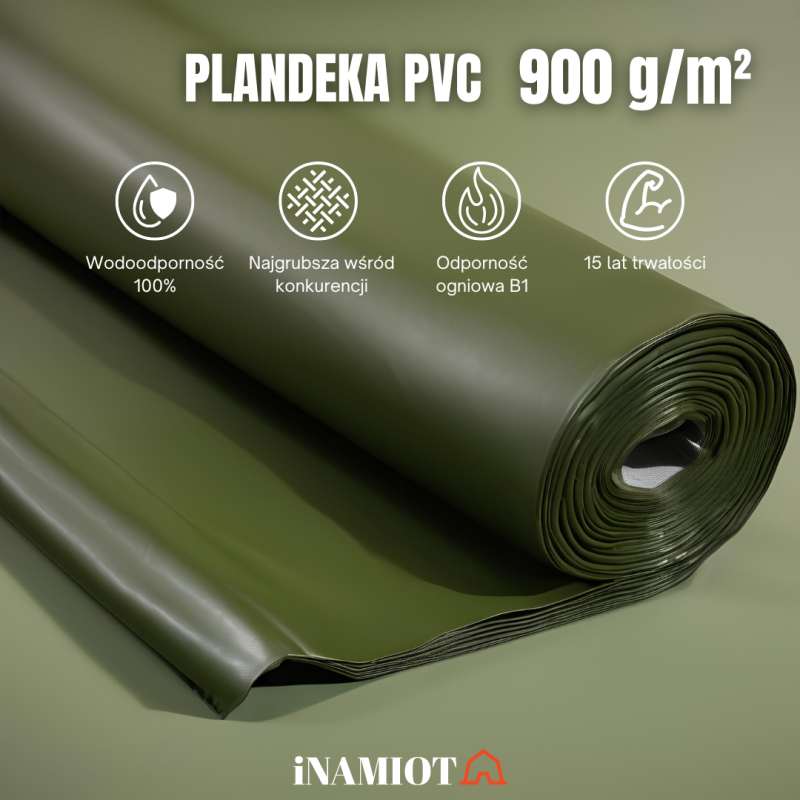

Durable PVC tarpaulin - protecting stored materials
The entire structure is covered with a robust PVC tarpaulin, which is resistant to UV radiation, moisture and fluctuating temperatures. Thanks to its curved shape, snow and rain run off without collecting on the surface and the interior remains adequately protected whatever the season.

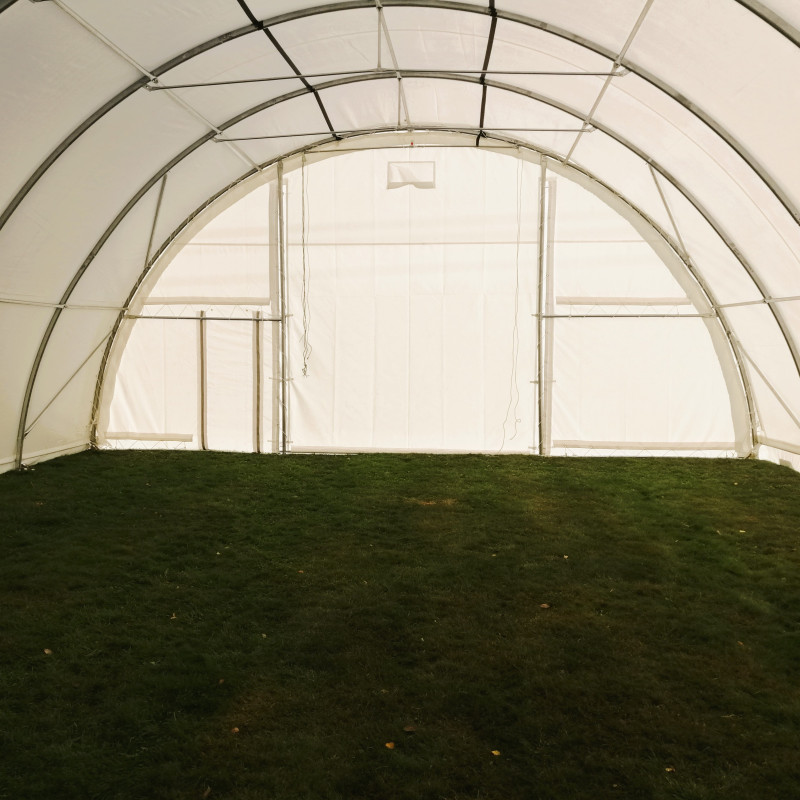

The 9 × 10 m arched tent has been designed to maximise space organisation - providing convenient access, a generous usable height and the ability to freely position machinery, equipment or materials. As a result, the arched shelter is a functional agricultural building for agricultural enterprises, where a tractor, trailer, baler can be conveniently positioned, with space for fodder or straw bales next to them, without the need to squeeze and without the risk of accidentally damaging the equipment.
Use of the 9 × 10 m arch hall on the farm

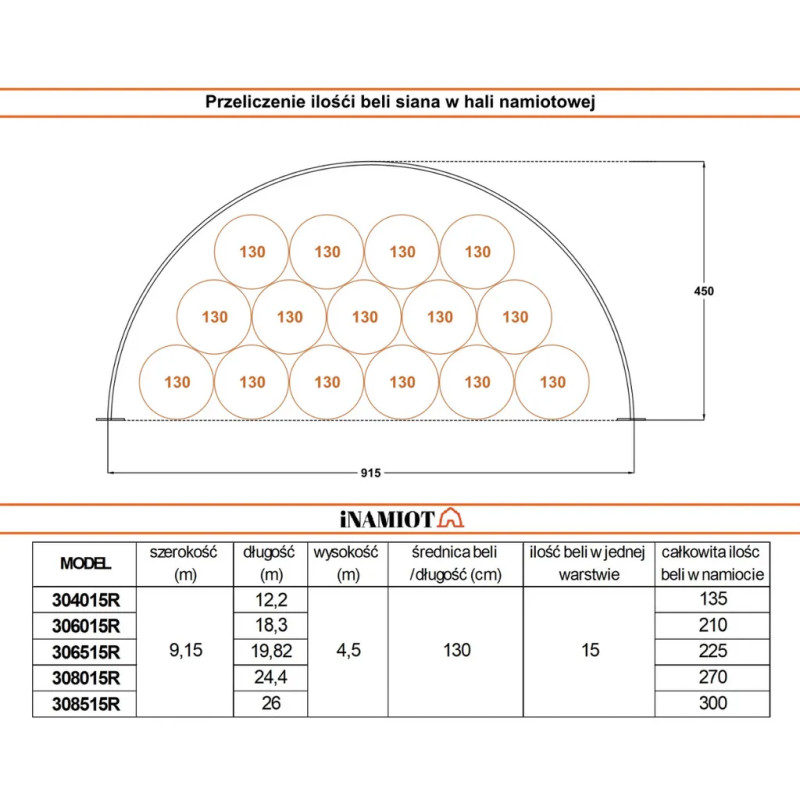

The 303315R model in the 9 × 10 m size is a typical agricultural hall that meets the real needs of livestock and production-oriented farms. It works well as a storage facility for feed - hay, straw, bales, compound feed - and as a place to store bedding, stock for cattle, pigs or horses. Thanks to its stable, reinforced construction and PVC tarpaulin, crops and materials are protected from rain, snow and wind, reducing losses and helping to maintain the right quality of feed all year round. In practical terms, this means that the farmer has a dry, covered space at hand in which to store the farm's most valuable items - from bales of hay for horses to bags of concentrates for dairy cows -without worry.

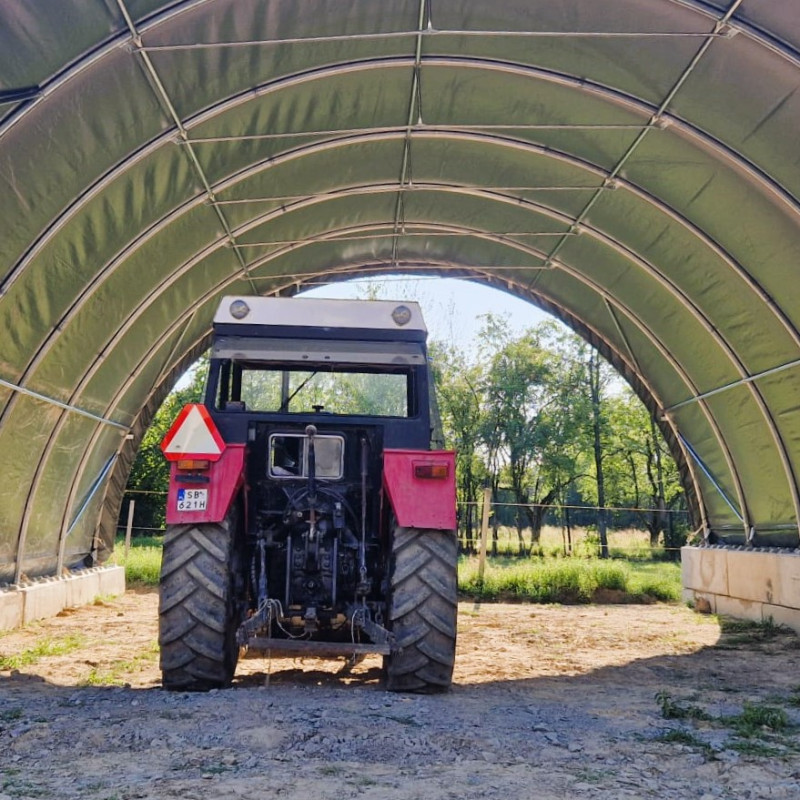

The 9 × 10 m hall is also ideal as a place to safely garage farm machinery and the tools needed for daily work: tractors, trailers, loaders, spreaders, sprayers, ploughs or balers. The compact length of 10 m makes it easy to position the building next to a barn, stable or where every metre of yard counts, while also ensuring convenient entry and manoeuvring of equipment. The interior can be used as a covered work area - ideal for servicing machinery, minor repairs or preparing equipment for the season, without having to work outdoors. This makes the hall a practical centre for the farm's technical facilities.
Why choose a 9 × 10 m arch hall from inamiot.pl/gb/?
The 303315R 9 × 10 m agricultural hall has been designed for intensive, year-round use in a farm setting. The sturdy steel construction with galvanised profiles, additional reinforcements in the form of diagonal bracing, struts under the ceiling and rope bracing ensure that the structure remains stable even in high winds and heavy snow loads. The resistant PVC tarpaulin, on the other hand, protects against moisture and UV radiation, creating a safe cover for agricultural machinery, fodder, straw or herd management equipment. In practice, the user gains a structure that can withstand typical loads - not only the weather, but also those associated with the frequent entry and exit of heavy equipment.
At the same time, it is a comfortable and functional useable area that can be easily adapted to the specific characteristics of the farm - whether we are talking about dairy farming, cattle fattening, horse stables or crop production. The agricultural hall from inamiot.pl/gb/ helps to organise the farm's premises - in one place you can organise a storage area for feed, an area for storing tools and a secure garage for agricultural machinery.
The 303315R 9 × 10 m hall is an investment that facilitates work organisation, increases farming comfort and provides a safe place to store the most important resources on the farm.
For more information or inquiries, please visit our contact or our customising page.
